Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y02030173 Bracket, Control 11 Appelez-nous -
1 01210107 Board, Control 11 Appelez-nous -
2 02060377 Switch Panel 11 Appelez-nous -
3 02100256 Insert, Black 11 Appelez-nous -
4 03020041 Screw 11 Appelez-nous -
4 Y03010147 Screw (top) 11 Appelez-nous -
5 02100244 Insert, Control/door 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

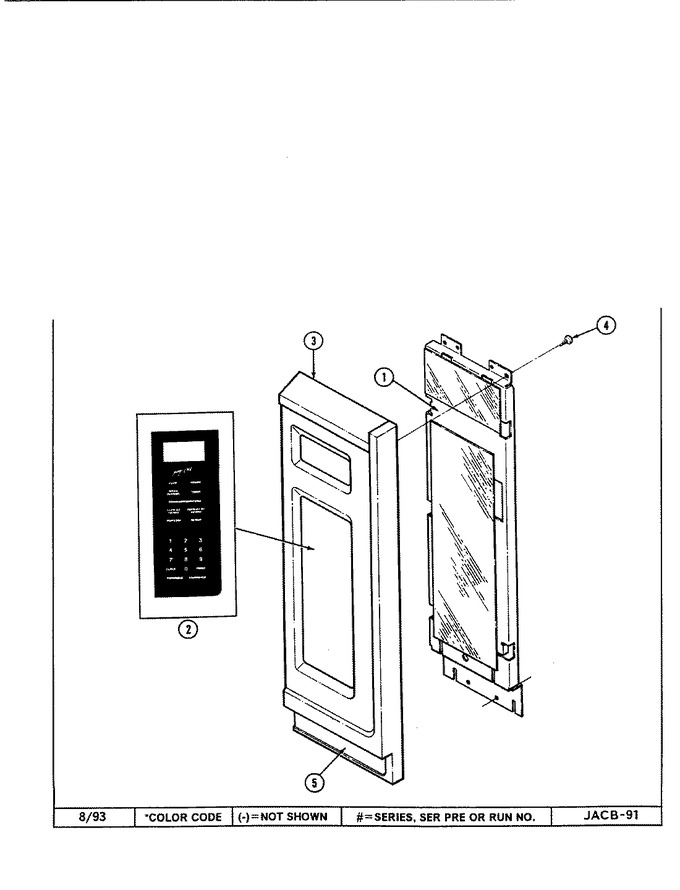

Diagram for WM2750B
