Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 704676 Extrusion, Top/bottom 11 Appelez-nous -
2 704395 Extrusion, Side 11 Appelez-nous -
3 WP12990527 Screw   (Replaces: Y708955) 11 In-Stock Immediately $ 7.15

3 703534 Screw 11 Appelez-nous -
4 704344 Bracket, Stop 11 Appelez-nous -
5 704343 Support, Front 11 Appelez-nous -
5 704342 Front, Stop 11 Appelez-nous -
5 WP90767 Screw   (Replaces: Y700502) 11 In-Stock Immediately $ 7.04

6 704982 Rail, Support 11 Appelez-nous -
6 702898 Insulator 11 Appelez-nous -
6 704339 Support, Bracket 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

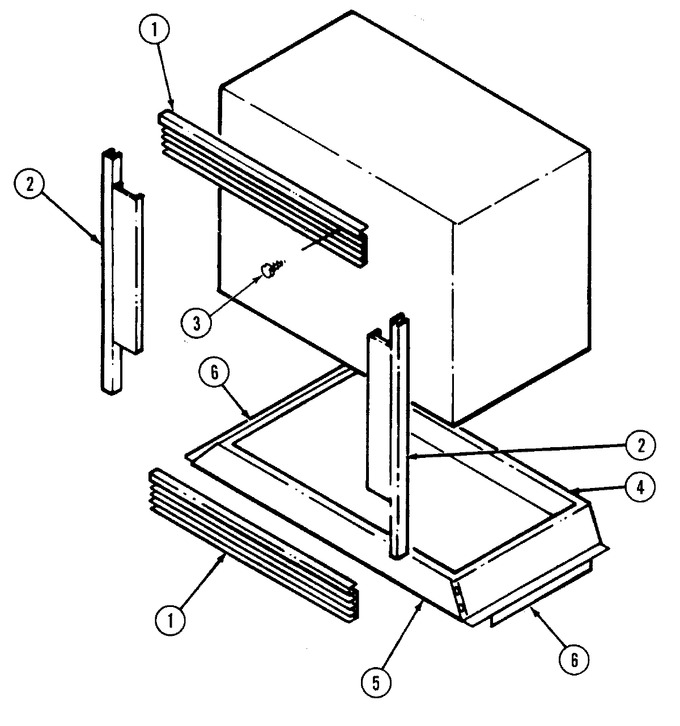

Diagram for WM2750B
