Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y02040101 Plate, Component Mounting 11 Appelez-nous -
2 WP8281227 Screw   (Replaces: Y03010144) 11 Special Order $ 9.40

3 01040004 Magnetron 11 Appelez-nous -
4 01060029 Light, Oven 11 Appelez-nous -
5 01100045 Receptacle, Light 11 Appelez-nous -
6 WP210720 Rivet, Pop   (Replaces: Y03060002) 11 Special Order $ 12.14

7 02310109 Tape, Foam 11 Appelez-nous -
8 Y02170111 Support, Duct Magnetron 11 Appelez-nous -
9 Y01020023 Capacitor 11 Appelez-nous -
9 01010008 Resistor, Bleeder 11 Appelez-nous -
10 01130028 Transformer, H.v. 11 Appelez-nous -
11 Y01050005 Fuse 15a 125v 11 Appelez-nous -
12 W10124350 Not Required Part Or See Note Appelez-nous -
12 Y03110050 Clip 11 Appelez-nous -
13 02030123 Bracket 11 Appelez-nous -
14 Y02030144 Bracket, Blower Support 11 Appelez-nous -
14 Y01110016 Wheel, Blower 11 Appelez-nous -
14 04021191 Blower Assembly 11 Appelez-nous -
14 01110029 Motor, Blower 11 Appelez-nous -
14 Y02170119 Housing, Blower 11 Appelez-nous -
15 03010098 Screw 11 Appelez-nous -
16 Y03020076 Screw 11 Appelez-nous -
17 02310071 Tape, Foam 11 Appelez-nous -
18 Y04020842 Duct Assembly, Magnetron 11 Appelez-nous -
19 02310070 Tape, Foam 11 Appelez-nous -
20 Y04010206 Diode 11 Appelez-nous -
21 Y02230008 Foot, Base 11 Appelez-nous -
22 W11233072 Screw   (Replaces: Y03020068) 11 In-Stock Immediately $ 12.62

23 03010094 Screw 11 Appelez-nous -
24 01080055 Cord, Power (wht) 11 Appelez-nous -
25 03110022 Clip, Wire Harness 11 Appelez-nous -
26 02300020 Cover, Comp Mntg 11 Appelez-nous -
26 Y04060532 Hv Lead Wire (8 ``) 11 Appelez-nous -
26 04010271 Wire Harness 11 Appelez-nous -
26 Y04060535 Hv Lead Wire (16``) 11 Appelez-nous -
26 01180010 Switch, Temp Limit 11 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

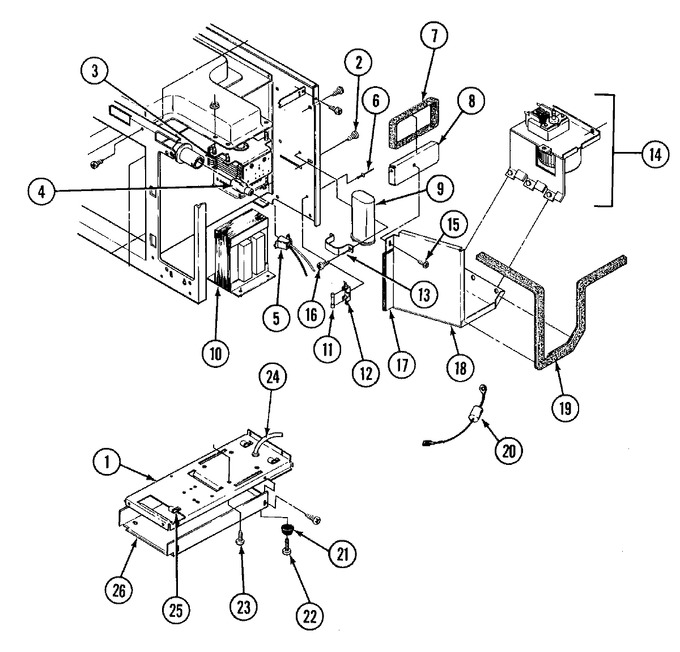

Diagram for WM2750B
