SELECT A DIAGRAM

01 - Blower Motor (convection)


02 - Blower Motor (cooling)


03 - Body (lower)


04 - Body-upper (m167)


05 - Control Panel (lower)


06 - Control Panel-upper (m167)


07 - Door (lower)


08 - Door-upper (m167)


09 - Interlock Switches-upper


10 - Internal Controls (lower)


11 - Internal Controls-upper


12 - Oven (lower)

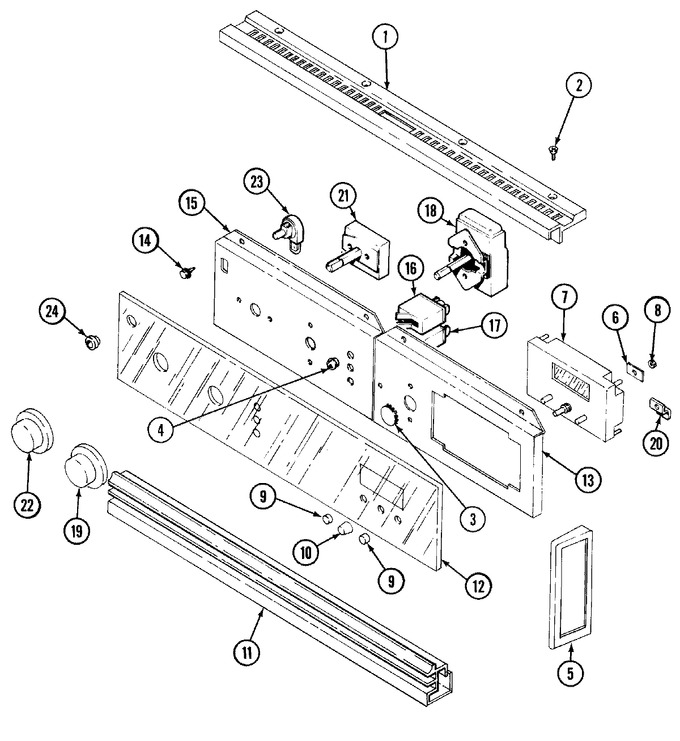

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	04100541		Extrusion, Top (wht)	11	Appelez-nous	-
2	712066		Screw	11	Appelez-nous	-
3	702286		Plug, Hole	11	Appelez-nous	-
4	Y700630		Lens, Indicator Lights	11			$ 4.18
5	04100644		Cap, End-right (wht)	11	Appelez-nous	-
5	04100645		End Cap (lh)	11	Appelez-nous	-
6	703676		Bracket, Timer	11	Appelez-nous	-
7	12200028CP		Clock Kit, Electronic   (Replaces: 12200028)	11	Appelez-nous	-
8	703679		Palnut	11	Appelez-nous	-
9	WP7711P492-60		Knob, Clock (sm-gry)   (Replaces: Y704484)	11			$ 12.13
10	WP7711P492-60		Knob, Clock (lg-gry) ??   (Replaces: Y704485)	11			$ 12.13
11	704874		Extrusion, Bottom (chr)	11	Appelez-nous	-
12	705129		Glass, Control Panel	11	Appelez-nous	-
13	705336		Panel, Control (rt)	11	Appelez-nous	-
14	705331		Pad, Spacer	11	Appelez-nous	-
15	705337		Panel, Control (lt)	11	Appelez-nous	-
16	Y702394		Light, Indicator 240v	11	Appelez-nous	-
17	Y702393		Light, Indicator-120v	11	Appelez-nous	-
18	Y04100575		Thermostat	11			$ 214.97
18	71002058		Screw   (Replaces: Y702124)	11			$ 5.82
19	Y704482		Knob, Thermostat (wht)	11	Appelez-nous	-
20	WP12990527		Screw   (Replaces: Y708955)	11		Immediately	$ 7.15
20	701609		Angle, Attachment	11	Appelez-nous	-
21	703077		Switch, Selector Upper	11	Appelez-nous	-
22	71002058		Screw   (Replaces: Y702124)	11			$ 5.82
22	WPY704841		Knob, Selector (wht)   (Replaces: Y04100031)	11			$ 40.37
23	704878		Switch, Push	11	Appelez-nous	-
24	704897		Bezel, Switch	11	Appelez-nous	-
24	OU2410UA		Manual, Use & Care	11	Appelez-nous	-
24	16000326		Guide, Quick Ref - Jenn-air	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
