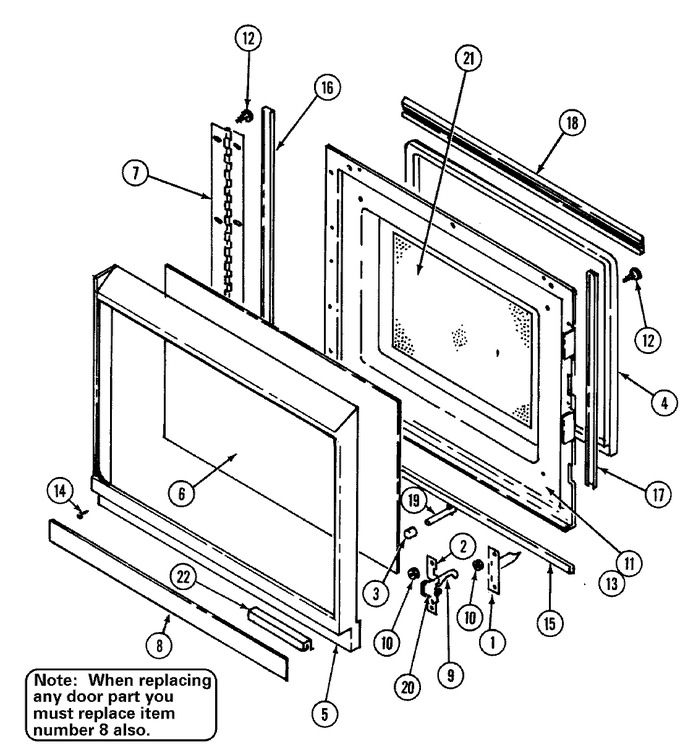

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y02030117		Activator, Monitor	11	Appelez-nous	-
2	Y02030116		Bracket, Door Latch	11	Appelez-nous	-
2	Y03010113		Screw	11	Appelez-nous	-
3	Y02100135		Bumper	11	Appelez-nous	-
4	Y02100080		Choke, Filler (wht)	11	Appelez-nous	-
5	04021590		Frame, Door(w)	11	Appelez-nous	-
6	02220116		Glass, Door (w)	11	Appelez-nous	-
7	02200016		Hinge, Door	11	Appelez-nous	-
8	Y02100196		Insert, Control/door	11	Appelez-nous	-
9	02190056		Latch, Door	11	Appelez-nous	-
10	M0282005		Nut, Hex(must Order Locally)   (Replaces: Y03050041)	11			$ 7.07
11	04021461		Panel, Inner Door	11	Appelez-nous	-
12	Y03010157		Screw, 6-32 X 3/8 Ph Black	11	Appelez-nous	-
13	Y03010118		Screw	11	Appelez-nous	-
14	WP74004005		Screw   (Replaces: Y03010135)	11			$ 6.95
15	02120114		Seal, Bottom	11	Appelez-nous	-
16	Y02120121		Seal, Hinge Side	11	Appelez-nous	-
17	Y02120122		Seal, Latch Side	11	Appelez-nous	-
18	Y03120064		Shim	11	Appelez-nous	-
18	02120153		Seal, Top	11	Appelez-nous	-
19	Y03120069		Spacer, Door Window	11	Appelez-nous	-
20	Y03180023		Spring, Door Latch	11	Appelez-nous	-
21	Y02220073		Window, Polyester	11	Appelez-nous	-
22	02120166		Extrusion, Handle (wht)	11	Appelez-nous	-
