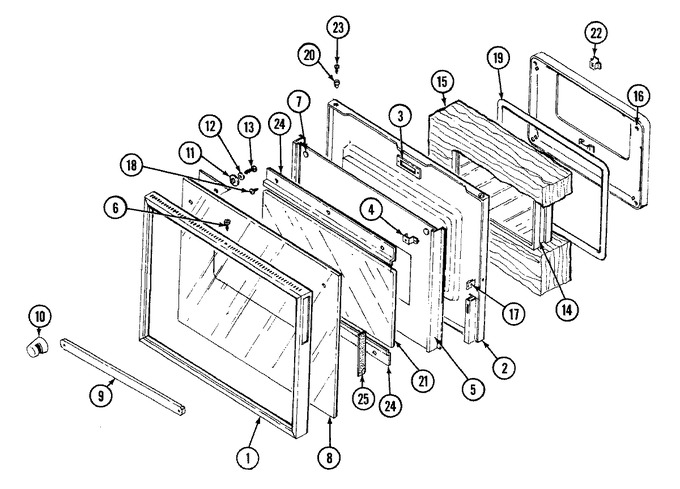

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	04100545		Frame, Door (wht)	11	Appelez-nous	-
2	WP90767		Screw   (Replaces: Y700502)	11		Immediately	$ 7.04
2	Y04100543		Liner, Door	11	Appelez-nous	-
3	Y712010		Plate, Latch (upper)	11	Appelez-nous	-
3	WP210720		Rivet   (Replaces: 701662)	11			$ 12.14
4	701652		Bracket, Stand-off	11	Appelez-nous	-
5	04100542		Baffle, Door	11	Appelez-nous	-
6	W11233072		Screw   (Replaces: Y708733)	11		Immediately	$ 12.62
7	Y704223		Bumper, Button	11	Appelez-nous	-
8	705013K		Glass, Screened	11	Appelez-nous	-
9	ODH1		Handle ----na   (Replaces: 704453)	11			$ 45.63
10	Y704454		End Cap (wht)	11	Appelez-nous	-
11	Y704489		Bushing	11	Appelez-nous	-
12	701736		Washer	11	Appelez-nous	-
12	704805		Gusset----na	11	Appelez-nous	-
13	704963		Screw	11	Appelez-nous	-
14	701648		Window Pack	11	Appelez-nous	-
15	701660		Insulation, Top	11	Appelez-nous	-
15	702292		Insulation, Bottom	11	Appelez-nous	-
15	702293		Insulation	11	Appelez-nous	-
16	712011		Plug, Oven Door Weld	11	Appelez-nous	-
17	704487		Clip	11	Appelez-nous	-
18	04100574		Screw (no.8 Ab)	11	Appelez-nous	-
19	WPY702338		Seal, Oven Door   (Replaces: Y702338)	11		Immediately	$ 172.53
20	701643		Nut, Push In	11	Appelez-nous	-
21	Y704820		Glass, Baffle	11	Appelez-nous	-
22	705404		Clip	11	Appelez-nous	-
23	703958		Screw	11	Appelez-nous	-
24	WPY706189		Screw (blk)   (Replaces: Y704238)	11		Immediately	$ 6.47
24	Y704819		Retainer, Glass	11	Appelez-nous	-
25	Y04100639		Insert, Door (wht)	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
