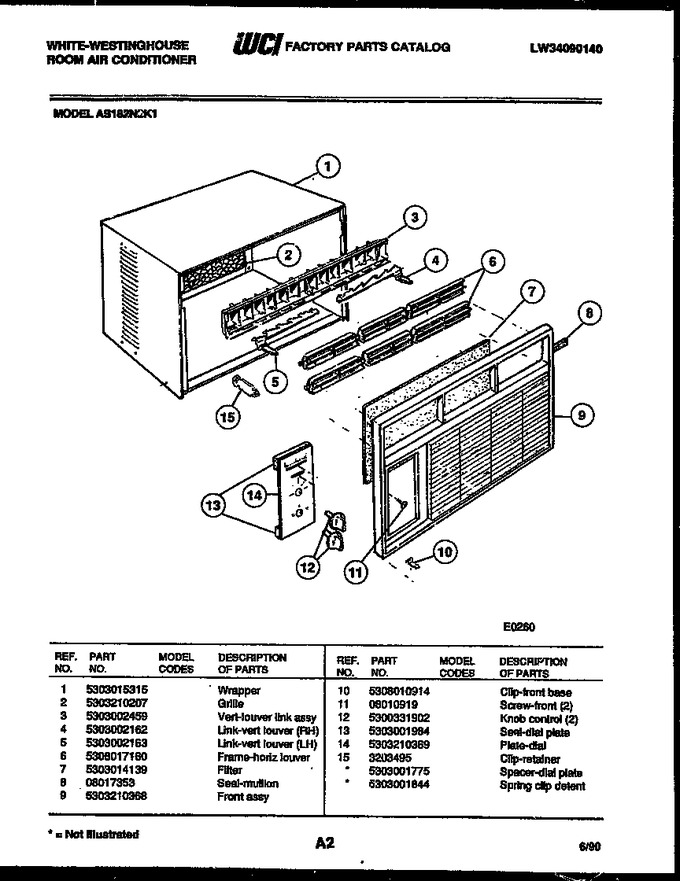

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015315 | Wrapper |
|
- | |||||
| 2 | 5303210207 | Grille |
|
- | |||||
| 3 | 5303002459 | Vert-louver Link Assy |
|
- | |||||
| 4 | 5303002162 | Link-vert Louver Rh |
|
- | |||||
| 5 | 5303002163 | Link-vert Louver Lh |
|
- | |||||
| 6 | 5308017160 | Frame-horiz. Louver |
|
- | |||||
| 7 | 5303014139 | Filter |
|
- | |||||
| 8 | 08017353 | Seal - Mullion |
|
- | |||||
| 9 | 5303210368 | Front Assy |
|
- | |||||
| 10 | 5308010914 | Clip-front/base |
|
- | |||||
| 11 | 08010919 | Screw-front (2) |
|
- | |||||
| 12 | 5300331902 | Knob-control (2) |
|
- | |||||
| 13 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 14 | 5303210369 | Plate-dial |
|
- | |||||
| 15 | 3203495 | Clip-retainer |
|
- | |||||
| *30669 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| *30669 | 5303001844 | Spring-clip Detent |
|
- |
