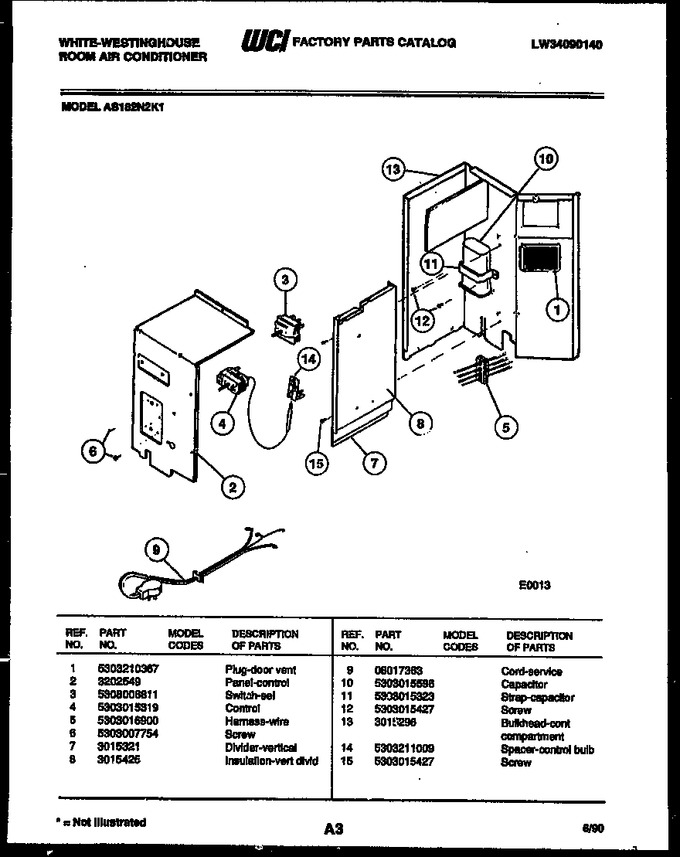

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210367 | Plug-door Vent |
|
- | |||||
| 2 | 3202549 | Panel - Control |
|
- | |||||
| 3 | 5308006811 | Switch-sel |
|
$ 33.65 | |||||
| 4 | 5303015319 | Control |
|
- | |||||
| 5 | 5303016900 | Harness-wire |
|
- | |||||
| 6 | 5303007754 | Screw |
|
- | |||||
| 7 | 3015321 | Divider - Vertical |
|
- | |||||
| 8 | 3015425 | Insulation-vert Divid |
|
- | |||||
| 9 | 08017363 | Cord-service |
|
- | |||||
| 10 | 5303015596 | Capacitor |
|
- | |||||
| 11 | 5303015323 | Strap-capacitor |
|
- | |||||
| 12 | 5303015427 | Screw |
|
- | |||||
| 13 | 3015296 | Bulkhead-cont Compartment |
|
- | |||||
| 14 | 5303211009 | Spacer-control Bulb |
|
- | |||||
| 15 | 5303015427 | Screw |
|
- |
