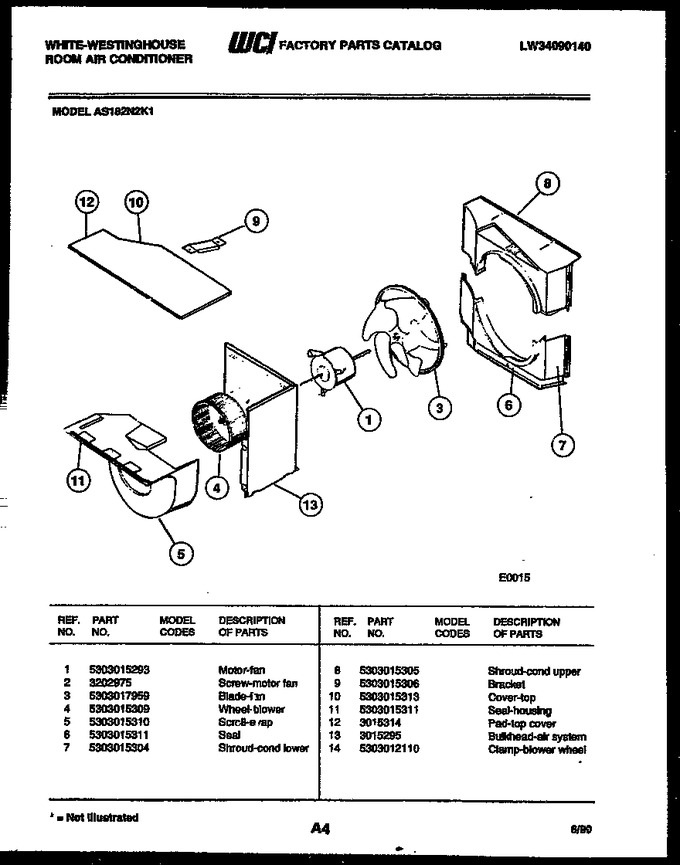

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015293 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw-motor Fan |
|
- | |||||
| 3 | 5303017959 | Blade-fan |
|
- | |||||
| 4 | 5303015309 | Wheel-blower |
|
- | |||||
| 5 | 5303015310 | Scroll-evap. |
|
- | |||||
| 6 | 5303015311 | Seal |
|
- | |||||
| 7 | 5303015304 | Shroud-cond. Lower |
|
- | |||||
| 8 | 5303015305 | Shroud-cond. Upper |
|
- | |||||
| 9 | 5303015306 | Bracket |
|
- | |||||
| 10 | 5303015313 | Cover - Top |
|
- | |||||
| 11 | 5303015311 | Seal - Housing |
|
- | |||||
| 12 | 3015314 | Pad-top Cover |
|
- | |||||
| 13 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 14 | 5303012110 | Clamp - Blower Wheel |
|
