SELECT A DIAGRAM

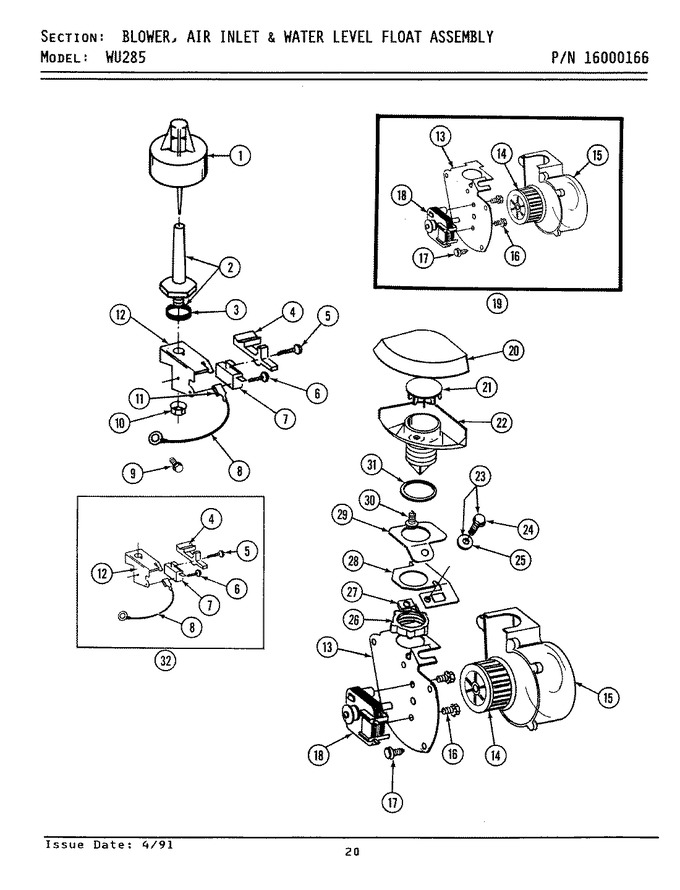

01 - Blower/air Inlet & Water Level Float


02 - Control Panel


03 - Door Assembly


04 - Front Panel & Access Panel


05 - Installation Accessories (sect 1 Of 2)


06 - Installation Accessories (sect 2 Of 2)


07 - Pump & Motor Assembly


08 - Racks


09 - Tub


10 - Tub Assembly Fastener Kits


11 - Tub Support (left)


12 - Tub Support (right)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	901141		Float	01	Appelez-nous	-
2	901114		Float Guide With Gasket	01	Appelez-nous	-
3	911244		Gasket	01	Appelez-nous	-
4	912014		Lever, Actuator	01			$ 52.13
5	912015		Pin, Lever Pivot	01	Appelez-nous	-
6	912012		Screw	01	Appelez-nous	-
7	900882		Switch, Water Level	01	Appelez-nous	-
8	901858		Ground Wire	01	Appelez-nous	-
9	WP4312464		Screw   (Replaces: 912197)	01			$ 6.26
10	911265		Palnut, Float	01			$ 5.83
11	912016		Receptacle	01	Appelez-nous	-
12	912013		Mounting Plate	01	Appelez-nous	-
13	911579		Blower Bracket	01	Appelez-nous	-
14	901289		Blower Wheel	01	Appelez-nous	-
15	911577		Blower Housing	01	Appelez-nous	-
16	910683		Screw	01	Appelez-nous	-
17	911439		Screw	01	Appelez-nous	-
18	901290		Blower Motor	01	Appelez-nous	-
19	901392		Blower Assembly	01	Appelez-nous	-
20	911575		Air Inlet Cap	01	Appelez-nous	-
21	911775		Blower Valve	01	Appelez-nous	-
22	911595		Air Inlet	01	Appelez-nous	-
23	901587		Screw And Washers Assembly	01	Appelez-nous	-
24	911857		Screw	01	Appelez-nous	-
25	902283		Washer	01	Appelez-nous	-
26	911576		Nut, Air Inlet	01	Appelez-nous	-
27	310217		No Longer Available	01	Appelez-nous	-
28	911580		Blower Support	01	Appelez-nous	-
29	911813		Pad, Blower Support	01	Appelez-nous	-
30	911536		Screw	01	Appelez-nous	-
31	911578		Gasket	01	Appelez-nous	-
32	900911		Float Switch & Bracket Assm	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
