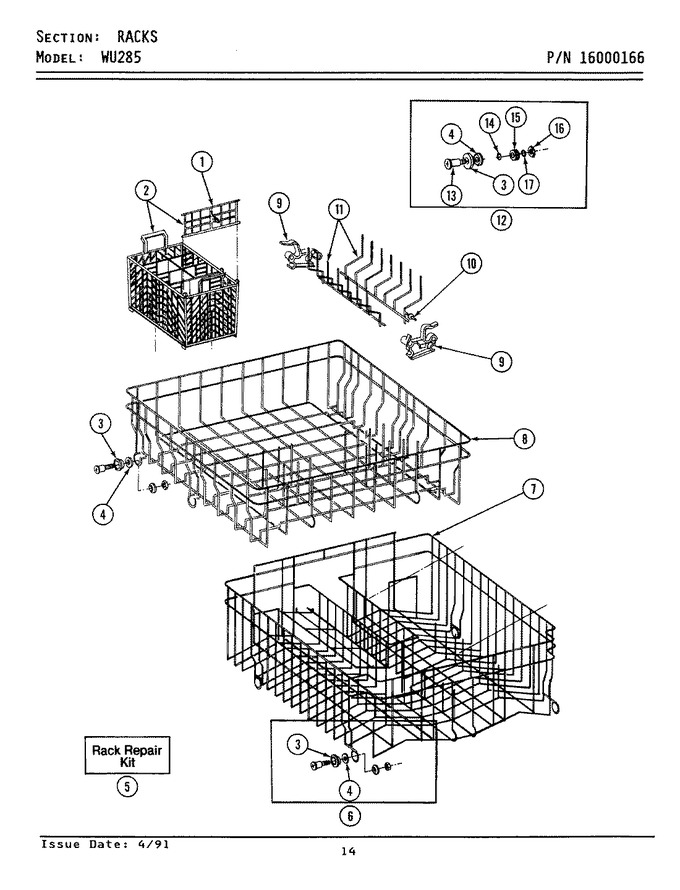

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 911780 | Cover For Silverware Basket | 01 |
|
- | ||||
| 2 | 901532 | Silverware Basket With Cove | 01 |
|
- | ||||
| 3 | 910390 | Roller | 01 |
|
- | ||||
| 4 | 911356 | Washer | 01 |
|
- | ||||
| 5 | CC901 | Rack Repair Kit (Replaces: 902286) | 01 |
|
Immediately | $ 52.44 | |||
| 6 | 901836 | Rack Roller Kit | 01 |
|
- | ||||
| 7 | 902510 | Lower Rack Assy, Blue | 01 |
|
- | ||||
| 8 | 902226 | Adjustable Upper Rack | 01 |
|
- | ||||
| 9 | 912098 | Pivot | 01 |
|
$ 6.02 | ||||
| 10 | 912099 | Sleeve | 01 |
|
$ 5.04 | ||||
| 11 | 902013 | Rack, Bowl | 01 |
|
- | ||||
| 12 | 900689 | Track Shaft And Seal Kit | 01 |
|
- | ||||
| 13 | 910053 | Shaft, Rack Roller | 01 |
|
- | ||||
| 14 | 911461 | Washer | 01 |
|
- | ||||
| 15 | 900669 | Washer | 01 |
|
- | ||||
| 16 | Y052721 | Nut | 01 |
|
$ 21.38 | ||||
| 17 | Y054858 | Washer | 01 |
|
- |
