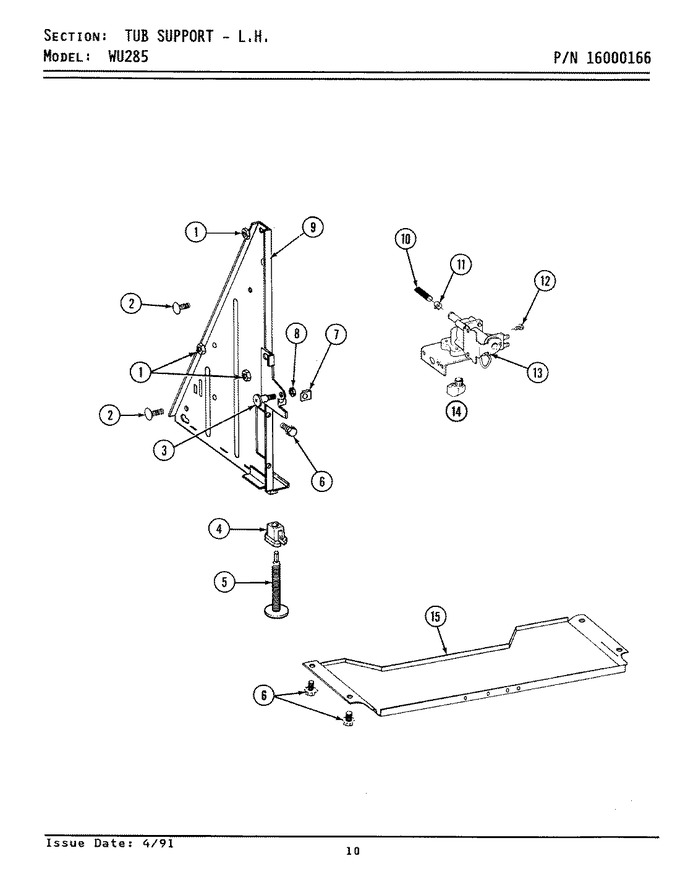

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y052721 | Nut | 01 |
|
$ 21.38 | ||||
| 2 | 911917 | Fastener, Insulation | 01 |
|
- | ||||
| 3 | 910747 | Hinge Pin | 01 |
|
- | ||||
| 4 | 912447 | Insert, Leg | 01 |
|
- | ||||
| 5 | WP233550 | Leg, Adjustable (Replaces: 910392) | 01 |
|
$ 7.16 | ||||
| 6 | WP4312464 | Screw (Replaces: 912197) | 01 |
|
$ 6.26 | ||||
| 7 | 911765 | U Type Fastener | 01 |
|
- | ||||
| 8 | WP3400029 | Nut, Washered Lock (Replaces: Y311426) | 01 |
|
Immediately | $ 6.98 | |||
| 9 | 902769 | Tub Support Assy Lh | 01 |
|
- | ||||
| 10 | 911249 | Injector Hose | 01 |
|
- | ||||
| 11 | WP596669 | Clamp, Spring (Replaces: 911856) | 01 |
|
Immediately | $ 7.56 | |||
| 12 | Y310632 | Screw | 01 |
|
- | ||||
| 13 | 902543 | Water Valve | 01 |
|
$ 88.06 | ||||
| 14 | 901107 | Street Elbow W/sealing Tape | 01 |
|
- | ||||
| 15 | 911231 | Base, Frame | 01 |
|
- |
