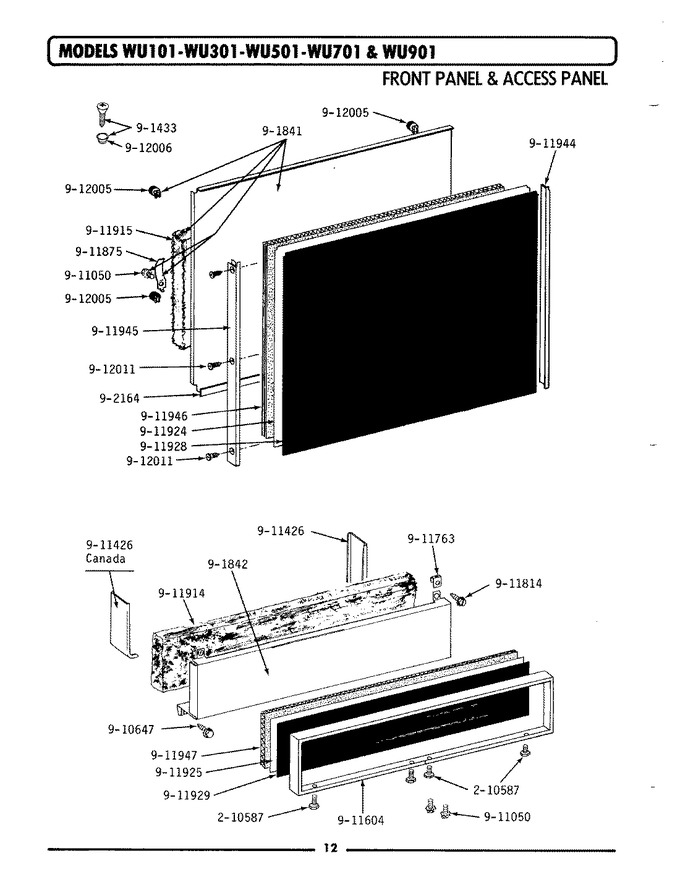

04 - Front Panel & Access Panel


05 - Installation Accessories


06 - Pump Assembly


07 - Track & Rack Assembly


08 - Tub Assembly & Components


09 - Tub Supports, Base Frame, Motor & Valves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 210587)	00		Immediately	$ 7.04
2	901433		Screw And Washer Assembly	00	Appelez-nous	-
4	901841		Front Panel Assembly	00	Appelez-nous	-
5	901842		Access Panel Assembly	00	Appelez-nous	-
7	902164		Lower Trim Kit	00	Appelez-nous	-
9	W11233072		Screw   (Replaces: 910647)	00		Immediately	$ 12.62
10	WP4312464		Screw   (Replaces: 911050)	00			$ 6.26
11	911426		Access Panel Barrier	00	Appelez-nous	-
12	911604		Trim For Access Panel	00	Appelez-nous	-
13	911763		U Type Fastener	00	Appelez-nous	-
14	911814		Screw	00	Appelez-nous	-
15	911875		Grounding Clip	00	Appelez-nous	-
16	911914		Insulation For Access Panel	00	Appelez-nous	-
17	911915		Insulation For Front Panel	00	Appelez-nous	-
19	911927		Insert-coffee/fresh Avocado	00	Appelez-nous	-
20	911928		Insert-white/black	00	Appelez-nous	-
21	911929		Insert-white/black	00	Appelez-nous	-
22	911944		Trim Strip - Right Hand	00	Appelez-nous	-
23	911945		Trim Strip - Left Hand	00	Appelez-nous	-
24	911946		Filler For Front Panel	00	Appelez-nous	-
25	911947		Filler For Access Panel	00	Appelez-nous	-
26	912005		Grommet	00	Appelez-nous	-
27	912006		Washer	00	Appelez-nous	-
28	912011		Screw----na	00	Appelez-nous	-
NI	911926		Insert-coffee/fresh Avocado	00	Appelez-nous	-
NI	901838		Insert Kit-coffee/fr Avocad	00	Appelez-nous	-
NI	902163		Insert Kit-white/black	00	Appelez-nous	-
NI	902233		Insert Kit-white/brown	00	Appelez-nous	-
NI	912096		Insert-white/brown	00	Appelez-nous	-
NI	912097		Insert-white/brown	00	Appelez-nous	-
