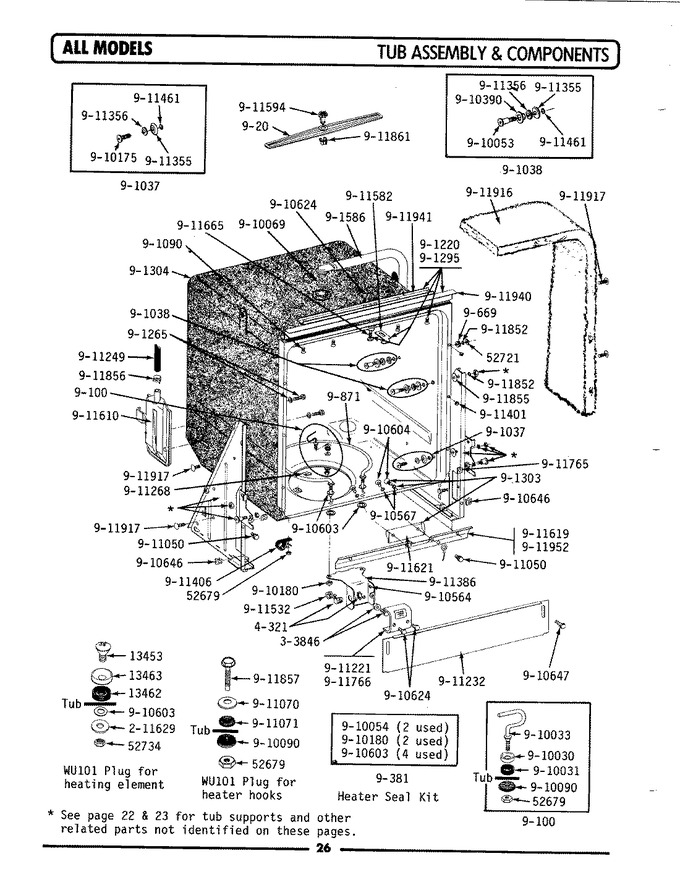

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0282009 | Hex. Nut----na (Replaces: Y052679) | 00 |
|
$ 12.06 | ||||
| 2 | Y052721 | Nut | 00 |
|
$ 21.38 | ||||
| 3 | W10850756 | Screw & Washer Assy. (Replaces: 303846) | 00 |
|
$ 6.98 | ||||
| 4 | 4396672 | Clamp, Cable (Replaces: 400321) | 00 |
|
Immediately | $ 17.38 | |||
| 5 | 900020 | Upper Spray Arm (w/nut) | 00 |
|
- | ||||
| 6 | 900669 | Washer | 00 |
|
- | ||||
| 7 | 901037 | Bolt, Washer And Seal Assm. | 00 |
|
- | ||||
| 8 | 901038 | Shaft, Washer And Seal Assm | 00 |
|
- | ||||
| 9 | 901220 | Wire, Ground | 00 |
|
- | ||||
| 10 | 901265 | Screw And Washer Assembly | 00 |
|
- | ||||
| 11 | 901295 | Top Flange Assembly | 00 |
|
- | ||||
| 12 | SC1002 | Screws,washers & Shield Ass (Replaces: 901303) | 00 |
|
Immediately | $ 87.61 | |||
| 13 | 901304 | Tub Assembly | 00 |
|
- | ||||
| 14 | 901586 | Top Spray Hose W/coupling | 00 |
|
- | ||||
| 15 | 910030 | Washer | 00 |
|
- | ||||
| 16 | 910031 | Seal Washer | 00 |
|
- | ||||
| 17 | 910033 | Heater Hook | 00 |
|
- | ||||
| 18 | 910053 | Shaft, Rack Roller | 00 |
|
- | ||||
| 19 | 910054 | Washer | 00 |
|
- | ||||
| 20 | 910069 | Washer, Tub Top | 00 |
|
$ 35.86 | ||||
| 21 | 910090 | Sealing Washer | 00 |
|
- | ||||
| 22 | 910175 | Screw | 00 |
|
- | ||||
| 23 | 910390 | Roller | 00 |
|
- | ||||
| 24 | 910564 | Insulating Bushing | 00 |
|
- | ||||
| 25 | 910567 | Washer | 00 |
|
- | ||||
| 26 | 910604 | Screw | 00 |
|
- | ||||
| 27 | WPW10139210 | Screw (Replaces: 910624) | 00 |
|
$ 6.75 | ||||
| 28 | 910646 | Fastener | 00 |
|
- | ||||
| 29 | W11233072 | Screw (Replaces: 910647) | 00 |
|
Immediately | $ 12.62 | |||
| 30 | WP4312464 | Screw (Replaces: 911050) | 00 |
|
$ 6.26 | ||||
| 31 | 911221 | Cover, Terminal | 00 |
|
- | ||||
| 32 | 911249 | Injector Hose | 00 |
|
- | ||||
| 33 | 911268 | Fastener | 00 |
|
- | ||||
| 34 | Y911355 | Cushion Washer | 00 |
|
- | ||||
| 35 | 911356 | Washer | 00 |
|
- | ||||
| 36 | 911386 | Terminal Compartment | 00 |
|
- | ||||
| 37 | 911401 | Hole Plug | 00 |
|
- | ||||
| 38 | 911406 | Cable Clip | 00 |
|
- | ||||
| 39 | 911461 | Washer | 00 |
|
- | ||||
| 40 | 911582 | Strike | 00 |
|
- | ||||
| 41 | 911594 | Outlet For Upper Spray Arm | 00 |
|
- | ||||
| 42 | 911610 | Vent Cover | 00 |
|
- | ||||
| 43 | 911619 | Drip Flange | 00 |
|
- | ||||
| 44 | 911621 | Shield | 00 |
|
- | ||||
| 45 | WP3400094 | Screw (Replaces: 911665) | 00 |
|
$ 7.14 | ||||
| 46 | 911765 | U Type Fastener | 00 |
|
- | ||||
| 47 | 911766 | Label | 00 |
|
- | ||||
| 48 | 911852 | Washer, Lock (brace) | 00 |
|
- | ||||
| 49 | 911855 | Washer | 00 |
|
- | ||||
| 50 | WP596669 | Clamp, Spring (Replaces: 911856) | 00 |
|
Immediately | $ 7.56 | |||
| 51 | 911861 | Nut | 00 |
|
- | ||||
| 52 | 911917 | Fastener, Insulation | 00 |
|
- | ||||
| 53 | 911940 | Top Flange | 00 |
|
- | ||||
| 54 | 911941 | Top Flange Channel | 00 |
|
- | ||||
| 55 | 911952 | Drip Flange - Canada | 00 |
|
- |
