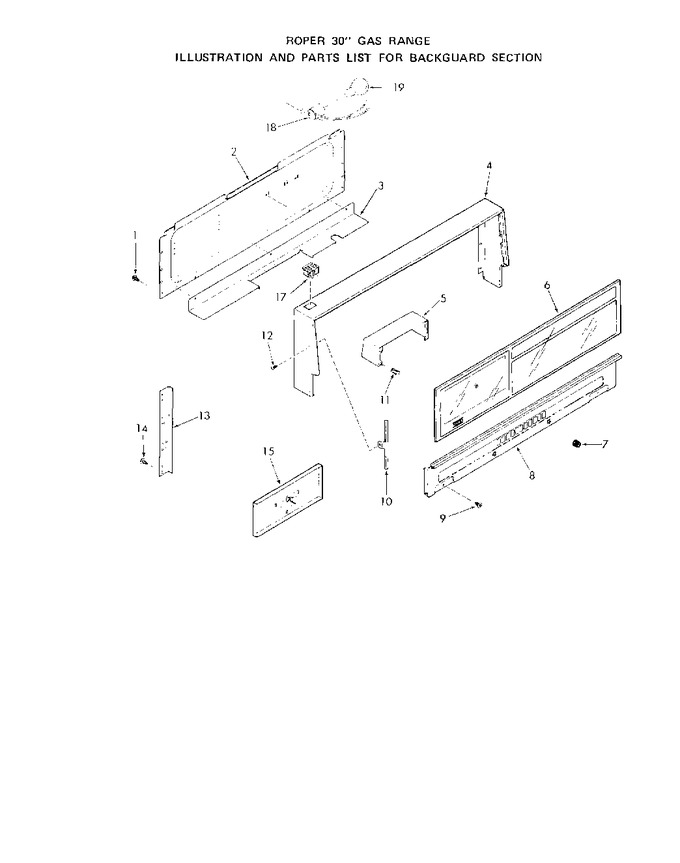

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
2	302907		Wire Cover-backguard		Appelez-nous	-
3	296569		Bottom-backguard Wire Cover		Appelez-nous	-
4	307407		Frame-backguard		Appelez-nous	-
5	293560		Mounting Bracket-clock		Appelez-nous	-
6	324263		Glass-backguard		Appelez-nous	-
7	294810		Knob-clock		Appelez-nous	-
8	307717		Front-backguard Bottom		Appelez-nous	-
9	295268		Screw 6-32x3/8``		Appelez-nous	-
10	299705		End Trim-backguard Glass (lt Or Rt)		Appelez-nous	-
11	293577		Tubular Clip		Appelez-nous	-
12	295268		Screw 6-32x3/8``		Appelez-nous	-
13	319361		Support-backguard (lt. Or Rt.)		Appelez-nous	-
14	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
15	322804		Clock W/4 Hr.timer		Appelez-nous	-
17	307410		Switch-oven & Top Light		Appelez-nous	-
18	299510		Holder-lamp Bulb		Appelez-nous	-
19	DA96-01243C		Lamp Bulb   (Replaces: 111257)				$ 144.00
