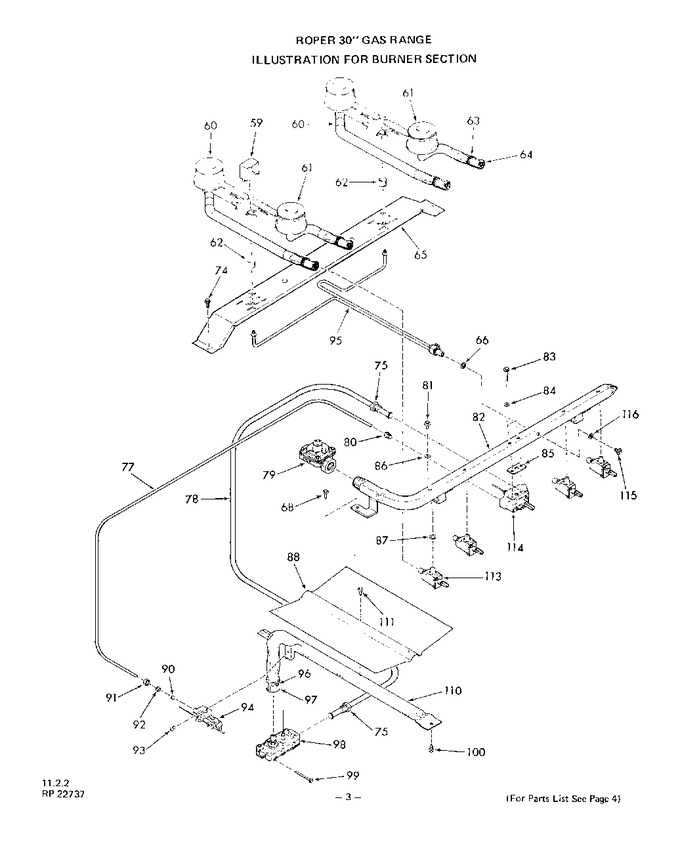

03 - Burner
04 - Body
05 - Oven Door
06 - Rotisserie , Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 59 | 296183 | Shield-top Pilot (lt. Or Rt.) |
|
- | |||||
| 60 | 310197 | Rear Top Burner-(inc`s. 63 & 64) |
|
- | |||||
| 61 | 310196 | Front Top Burner (inc`s. 63 & 64) |
|
- | |||||
| 62 | 308292 | Cup-front |
|
- | |||||
| 63 | 301911 | Adjustment Screw-air Shutter |
|
- | |||||
| 64 | 301910 | Air Shutter |
|
- | |||||
| 65 | 308297 | Support-top Burner |
|
- | |||||
| 66 | 323913 | Gasket |
|
- | |||||
| 68 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 74 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 75 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 77 | 322446 | Tubing 3/16`` |
|
- | |||||
| 78 | 295037 | Tubing 3/8`` |
|
- | |||||
| 79 | 324529 | Pressure Regulator |
|
- | |||||
| 80 | 79673 | Loxit Nut 3/16`` |
|
- | |||||
| 81 | 311455 | Mounting Screw (inc`s 86) |
|
- | |||||
| 82 | 323468 | Manifold Pipe |
|
- | |||||
| 83 | 318478 | Mounting Screw (inc`s. 84) |
|
- | |||||
| 84 | 318658 | Gasket (for 83) |
|
- | |||||
| 85 | 318567 | Silicone Rubber Gasket (for 114) |
|
- | |||||
| 86 | 304241 | Gasket (for 81) |
|
- | |||||
| 87 | 313563 | Silicone Rubber Gasket (for 113) |
|
- | |||||
| 88 | 302729 | Baffle - Oven Burner |
|
- | |||||
| 90 | 318485 | Orifice Cup Only (for 94) |
|
- | |||||
| 91 | 65712 | Compression Nut 3/16`` |
|
- | |||||
| 92 | 65711 | Compression Ball Sleeve 3/16`` |
|
$ 6.30 | |||||
| 93 | 288248 | Screw 10-24x1/4`` |
|
- | |||||
| 94 | 318486 | Pilot Only (inc`s 90) |
|
- | |||||
| 95 | 323912 | Pilot W/filter |
|
- | |||||
| 96 | 312989 | Adjustment Screw -air Shutter |
|
- | |||||
| 97 | 312988 | Air Shutter |
|
- | |||||
| 98 | 324078 | Control Valve (inc`s. 90 & 94) |
|
- | |||||
| 99 | 323296 | Screw 10-32 X 2`` |
|
- | |||||
| 100 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 110 | 319255 | Oven Burner (inc`s 88, 96 & 97) |
|
- | |||||
| 111 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 113 | 322347 | Gas Valve (4 Required-inc`s.keys81,86,87) |
|
- | |||||
| 114 | 324757 | Oven Thermsostat (inc`s. Key 85) |
|
- | |||||
| 115 | 323914 | Mounting Screw (inc`s. 116) |
|
- | |||||
| 116 | 323915 | Gasket (for 115) |
|
- |
