SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Burner


04 - Body


05 - Oven Door


06 - Rotisserie , Griddle

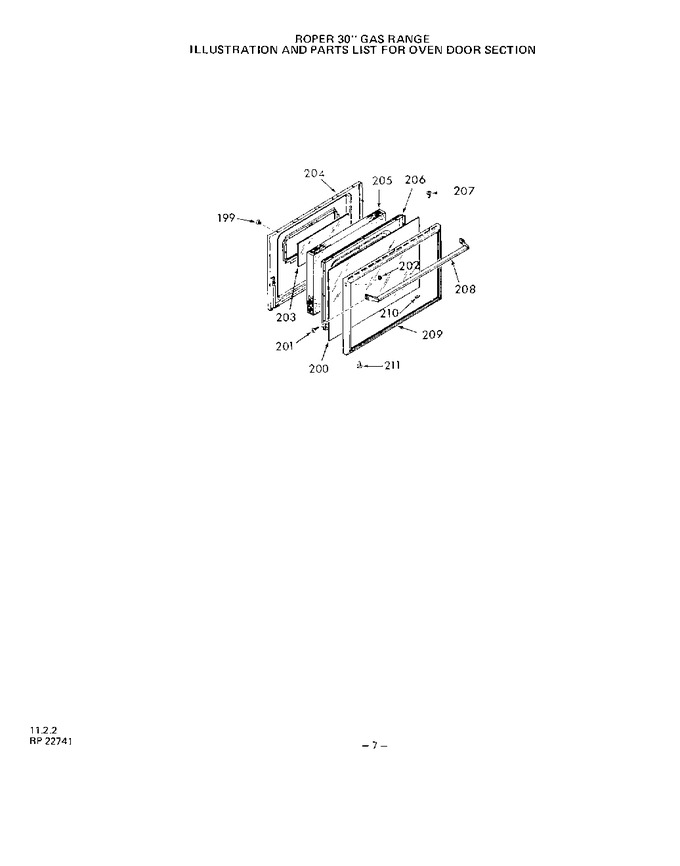

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
199	WPY04100165		Plug Button (2 Required)   (Replaces: 306667)			Immediately	$ 50.62
200	318315		Outer Glass-oven Door		Appelez-nous	-
201	319447		Screw 8-32 X 1/2``		Appelez-nous	-
202	239764		Keps Nut 8-32		Appelez-nous	-
203	296214		Inner Glass-oven Door		Appelez-nous	-
204	296205		Lining-oven Door		Appelez-nous	-
205	303556		Insulation		Appelez-nous	-
206	296471		Retainer - Oven Door Insulation		Appelez-nous	-
207	120855		Screw 6ax3/8``		Appelez-nous	-
208	303342		Handle-oven Door		Appelez-nous	-
209	296473		Frame-oven Door		Appelez-nous	-
210	112370		Cushion-door Glass (3 Required)		Appelez-nous	-
211	102376		Screw 10-32 X 1/2``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
