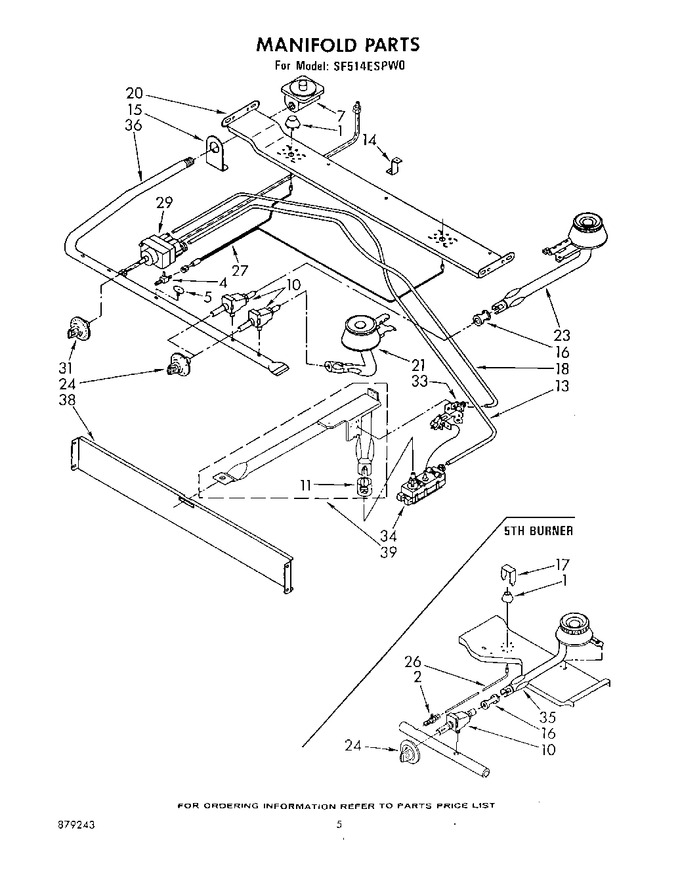

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878701		Cone, Top Lighter (3)		Appelez-nous	-
2	878887		Filter, Top Lighter		Appelez-nous	-
4	878712		Filter, Top Lighter		Appelez-nous	-
5	878303		Fitting, Flange		Appelez-nous	-
7	878008		Regulator, Pressure		Appelez-nous	-
10	878312		Valve, Top Burner (5)		Appelez-nous	-
11	878102		Shutter, Oven Burner Air		Appelez-nous	-
13	878716		Tubing, Oven		Appelez-nous	-
14	878542		Support, Burner Hanger		Appelez-nous	-
15	878115		Support, Inlet Pipe		Appelez-nous	-
16	878116		Cap, Top Burner Air Mixer		Appelez-nous	-
17	878889		Shield, Top Light		Appelez-nous	-
18	878720		Tubing, Control/pilot		Appelez-nous	-
20	878721		Hanger, Top Burner		Appelez-nous	-
21	878130		Burner, Top Front (2) (includes Illus. 16)		Appelez-nous	-
23	878131		Burner, Top Rear (2) (includes Illus. 16)		Appelez-nous	-
24	878335		Handle, Top Valve (5)		Appelez-nous	-
26	878888		Lighter, Top Burner		Appelez-nous	-
27	878708		Lighter, Top Burner		Appelez-nous	-
29	878709		Control, Oven		Appelez-nous	-
31	878158		Dial, Oven Control		Appelez-nous	-
33	878710		Lighter, Oven Burner		Appelez-nous	-
34	878711		Valve, Oven Lighter Safety		Appelez-nous	-
35	878572		Burner, Griddle (includes Illus. 16)		Appelez-nous	-
36	879008		Pipe, Manifold		Appelez-nous	-
38	879253		Deflector, Heat		Appelez-nous	-
39	878187		Burner, Oven		Appelez-nous	-
