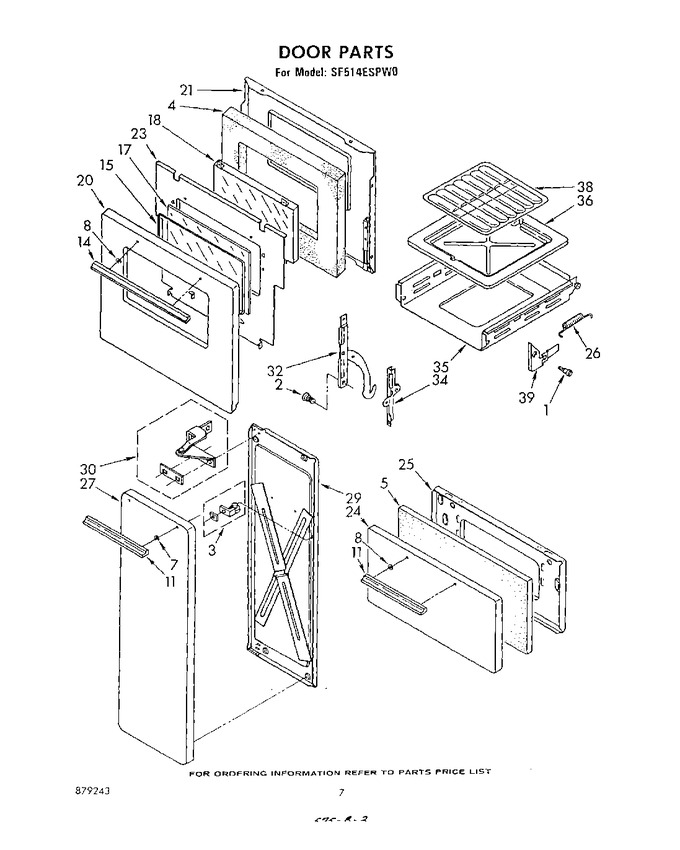

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	878079		Bolt, Shoulder 10-24 X 7/16 (2)		Appelez-nous	-
2	878080		Bolt, Shoulder 10-24 X 7/16 (2)		Appelez-nous	-
3	878529		Catch, Compartment Door		Appelez-nous	-
4	WPW10208653		Insulation, Oven Door   (Replaces: 878531)			Immediately	$ 49.92
5	878532		Insulation, Broiler Door		Appelez-nous	-
7	878310		Spacer, Door Handle (2)		Appelez-nous	-
8	878311		Spacer, Door Handle (4)		Appelez-nous	-
11	878550		Handle, Door 9`` (2)		Appelez-nous	-
14	878324		Handle, Oven Door		Appelez-nous	-
15	878556		Bezel, Oven Door		Appelez-nous	-
17	878557		Glass, Oven Door Outside		Appelez-nous	-
18	878558		Glass, Oven Door Package		Appelez-nous	-
20	878560		Panel, Oven Door (almond)		Appelez-nous	-
20	878562		Panel, Oven Door (white)		Appelez-nous	-
20	879102		Panel, Oven Door (platinum)		Appelez-nous	-
20	879101		Panel, Oven Door (toast)		Appelez-nous	-
21	878564		Lining, Oven Door		Appelez-nous	-
23	878565		Baffle, Door		Appelez-nous	-
24	878568		Panel, Broiler Door (white)		Appelez-nous	-
24	878566		Panel, Broiler Door (almond)		Appelez-nous	-
24	879103		Panel, Broiler Door (toast)		Appelez-nous	-
24	879104		Panel, Broiler Door (platinum)		Appelez-nous	-
25	878570		Lining, Broiler Door		Appelez-nous	-
26	878165		Spring, Broiler Door (2)		Appelez-nous	-
27	879106		Panel, Compartment Door (platinum)		Appelez-nous	-
27	879105		Panel, Compartment Door (toast)		Appelez-nous	-
27	878581		Panel, Compartment Door (white)		Appelez-nous	-
27	878579		Panel, Compartment Door (almond)		Appelez-nous	-
29	878583		Lining, Compartment Door		Appelez-nous	-
30	878592		Hinge, Compartment Door (2)		Appelez-nous	-
32	878167		Hinge, Oven Door		Appelez-nous	-
34	878168		Support, Oven Door (left Side)		Appelez-nous	-
34	878169		Support, Oven Door (right Side)		Appelez-nous	-
35	878172		Drawer, Broiler		Appelez-nous	-
36	878173		Pan, Broiler		Appelez-nous	-
38	878174		Tray, Broiler Pan		Appelez-nous	-
39	878184		Hinge, Broiler Door (right Side)		Appelez-nous	-
39	878183		Hinge, Broiler Door (left Side)		Appelez-nous	-
