SELECT A DIAGRAM

02 - Oven , Literature


03 - Backguard


04 - Manifold


05 - Door


06 - Cook Top

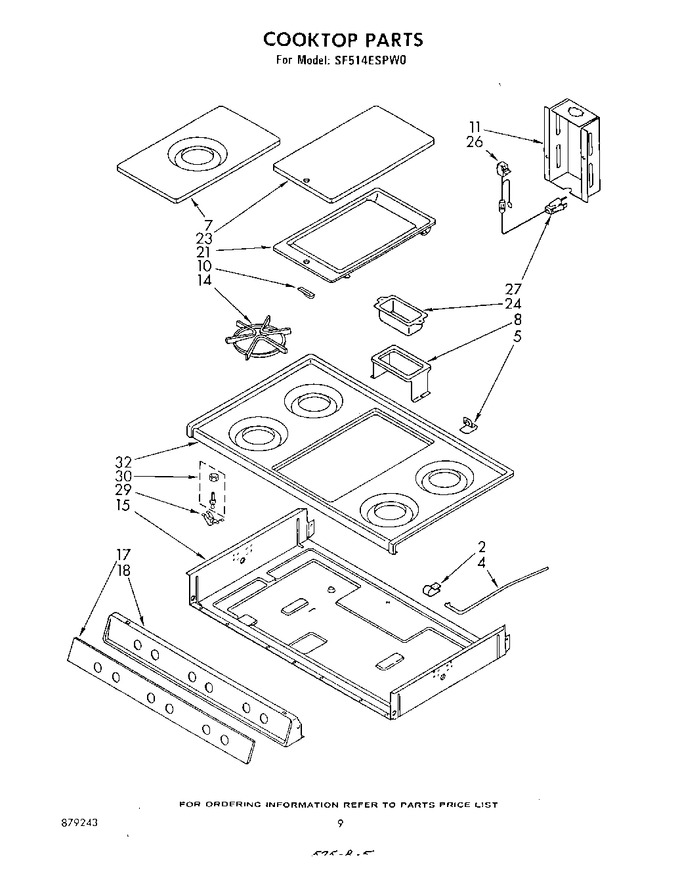

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	878083		Clamp, Top Stop		Appelez-nous	-
4	878098		Stop, Cook Top		Appelez-nous	-
5	878099		Spacer, Main Top		Appelez-nous	-
7	878535		Center, Cooktop (almond)		Appelez-nous	-
7	879113		Top, Center Cook (toast)		Appelez-nous	-
7	879114		Top, Center Cook (platinum)		Appelez-nous	-
7	878537		Center, Cooktop (white)		Appelez-nous	-
8	878539		Hanger, Grease Cup		Appelez-nous	-
10	878544		Reflector, Grid Lighter		Appelez-nous	-
11	878719		Cover, Wire		Appelez-nous	-
14	878940		Grate, Burner (5)		Appelez-nous	-
15	878548		Bottom, Burner Box		Appelez-nous	-
17	879254		Inlay, Manifold Panel		Appelez-nous	-
18	879115		Panel, Manifold (toast)		Appelez-nous	-
18	878552		Panel, Manifold (almond)		Appelez-nous	-
18	878554		Panel, Manifold (white)		Appelez-nous	-
18	879116		Panel, Manifold (platinum)		Appelez-nous	-
21	878573		Griddle		Appelez-nous	-
23	879117		Cover, Griddle (toast)		Appelez-nous	-
23	879118		Cover, Griddle (platinum)		Appelez-nous	-
23	878574		Cover, Griddle (almond)		Appelez-nous	-
23	878576		Cover, Griddle (white)		Appelez-nous	-
24	878578		Cup, Grease		Appelez-nous	-
26	878162		Block, Disconnect Socket		Appelez-nous	-
27	878298		Cord, Extension		Appelez-nous	-
29	878164		Catch, Main Top (2)		Appelez-nous	-
30	878499		Strike, Main Top (2)		Appelez-nous	-
32	879120		Top, Main (platinum)		Appelez-nous	-
32	878585		Top, Main (almond)		Appelez-nous	-
32	878587		Top, Main (white)		Appelez-nous	-
32	879119		Top, Main (toast)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
