SELECT A DIAGRAM

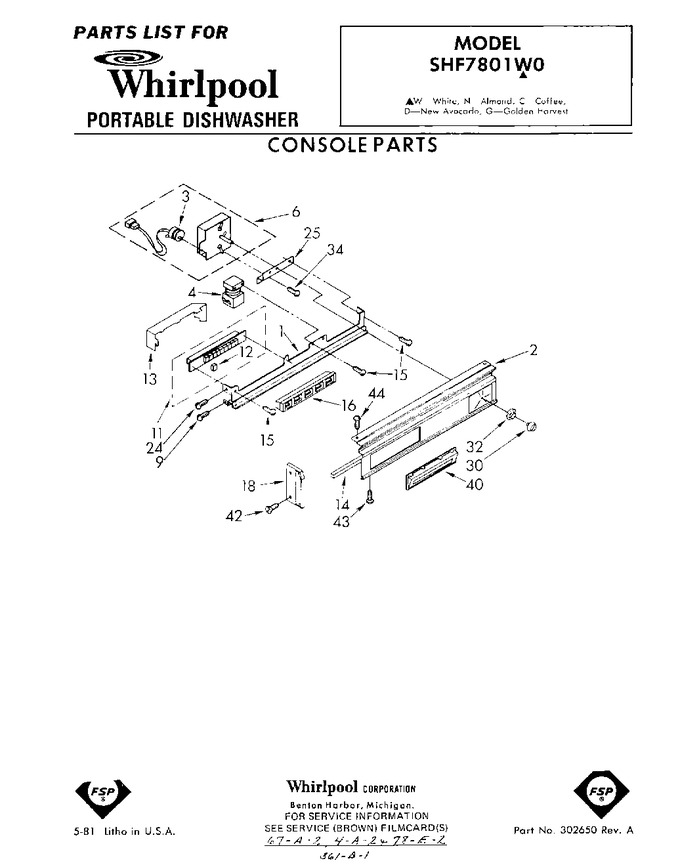

01 - Console


02 - Cabinet


03 - Door


04 - Tub , Literature And Optional


05 - Dishrack


06 - Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300750		Bracket, Control		Appelez-nous	-
2	302265		Panel, Escutcheon		Appelez-nous	-
3	301062		Motor, Timer		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
6	302567		Timer, Disconnect		Appelez-nous	-
9	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
11	302068		Switch, Pushbutton		Appelez-nous	-
12	301978		Button (7)		Appelez-nous	-
13	300242		Barrier, Pushbutton Switch		Appelez-nous	-
14	719860		Baffle		Appelez-nous	-
15	WP489128		Screw (6)   (Replaces: 98209)				$ 9.79
16	301878		Grille, Vent		Appelez-nous	-
18	303006		Cap, End (l.h.)		Appelez-nous	-
18	303005		Cap, End (r.h.)		Appelez-nous	-
24	WP488627		Screw, 8-18 X 1/2 (2)   (Replaces: 300128)				$ 6.81
25	301875		Bracket, Timer Mounting		Appelez-nous	-
30	302180		Knob, Timer		Appelez-nous	-
32	302067		Dial, Indicator		Appelez-nous	-
34	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
40	302258		Bezel Assembly		Appelez-nous	-
42	W10759522		Screw, 8-15 X 3/4 (4)   (Replaces: 162402)				$ 6.98
43	WP487353		Screw, 6-20 X 1/2 (3)   (Replaces: 301502)				$ 6.81
44	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65

    View Diagram in Separate Window       Print Part List
