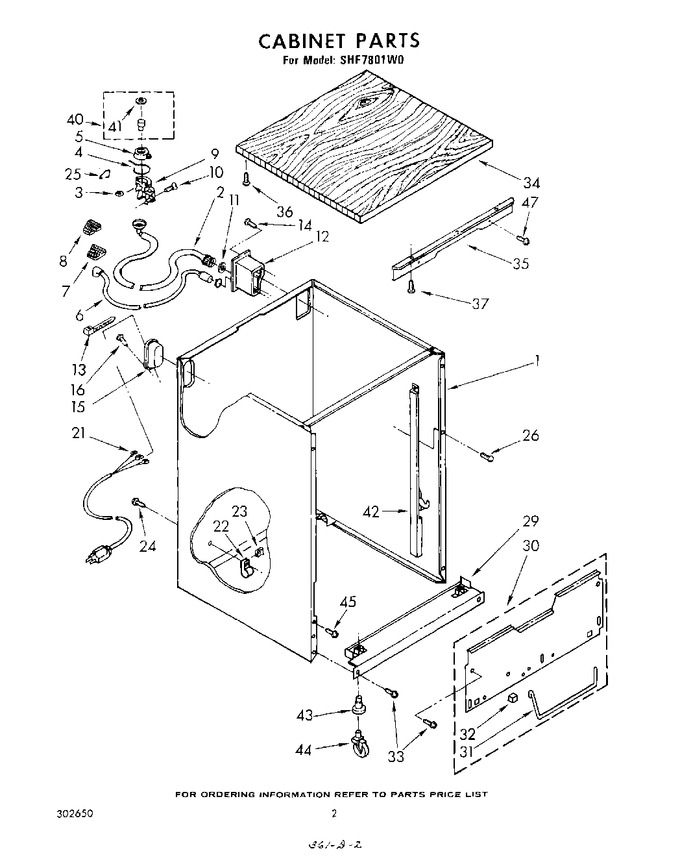

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	301737		Shell Assembly (coffee)		Appelez-nous	-
1	301736		Shell Assembly (golden Harvest)		Appelez-nous	-
1	301743		Shell Assembly (almond)		Appelez-nous	-
1	719614		Shell Assembly (white)		Appelez-nous	-
1	301738		Shell Assembly (new Avocado)		Appelez-nous	-
2	718056		Coupler Assembly		Appelez-nous	-
3	718738		``o`` Ring		Appelez-nous	-
4	717958		Spring, Coupler		Appelez-nous	-
5	717939		Latch, Cap		Appelez-nous	-
6	300275		Hose, Drain		Appelez-nous	-
7	300273		Flow Divider, Upper		Appelez-nous	-
8	300274		Flow Divider, Lower		Appelez-nous	-
9	717942		Cover, L.h.		Appelez-nous	-
9	717941		Cover, R.h.		Appelez-nous	-
10	717032		Screw, 8-18 X 3/4 (3)		Appelez-nous	-
11	WP16123		Washer   (Replaces: 16123)				$ 6.93
12	717030		Housing, Hose		Appelez-nous	-
13	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
14	WP488787		Screw, 8-18 X 1/2 (2)   (Replaces: 9418000)				$ 9.52
15	716234		Housing, Cord		Appelez-nous	-
16	WP90767		Screw (2)   (Replaces: 339493)			Immediately	$ 7.04
21	302325		Cord, Power		Appelez-nous	-
22	596553		Clamp, Strain Relief		Appelez-nous	-
23	717337		Nut, J-type		Appelez-nous	-
24	WP489128		Screw   (Replaces: 717232)				$ 9.79
25	718073		Coupler, Pull Ring		Appelez-nous	-
26	WP90767		Screw, 8-18 X 1/2 (2)   (Replaces: 339493)			Immediately	$ 7.04
29	719513		Toeplate Assembly (includes Illus. 43)		Appelez-nous	-
30	719091		Plate, Cover				$ 1,740.16
31	719093		Bar, Torsion (r.h.)		Appelez-nous	-
31	719094		Bar, Torsion (l.h.)				$ 1,874.92
32	719235		Bumper, Rubber		Appelez-nous	-
33	WP90767		Screw, Tapping (8)   (Replaces: 300890)			Immediately	$ 7.04
34	302182		Panel, Top		Appelez-nous	-
35	302250		Trim, Front		Appelez-nous	-
36	343826		Screw (2)		Appelez-nous	-
37	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 9418000)				$ 9.52
40	WPW10254672		Kit, Faucet Adapter   (Replaces: 300446)			Immediately	$ 49.54
41	300445		Washer		Appelez-nous	-
42	719622		Leg Assembly, L.h.		Appelez-nous	-
42	719621		Leg Assembly, R.h.		Appelez-nous	-
43	717588		Socket, Caster (alternate)		Appelez-nous	-
43	300450		Socket, Caster (alternate)		Appelez-nous	-
44	718534		Caster (use W/717588 Socket)		Appelez-nous	-
44	300424		Caster (use W/300450 Socket)		Appelez-nous	-
45	WP90767		Screw, 8a X 3/8 (3) (ground)   (Replaces: 90767)			Immediately	$ 7.04
47	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
