SELECT A DIAGRAM

01 - Console


02 - Cabinet


03 - Door


04 - Tub , Literature And Optional


05 - Dishrack


06 - Pump And Motor


07 - Wiring Harness

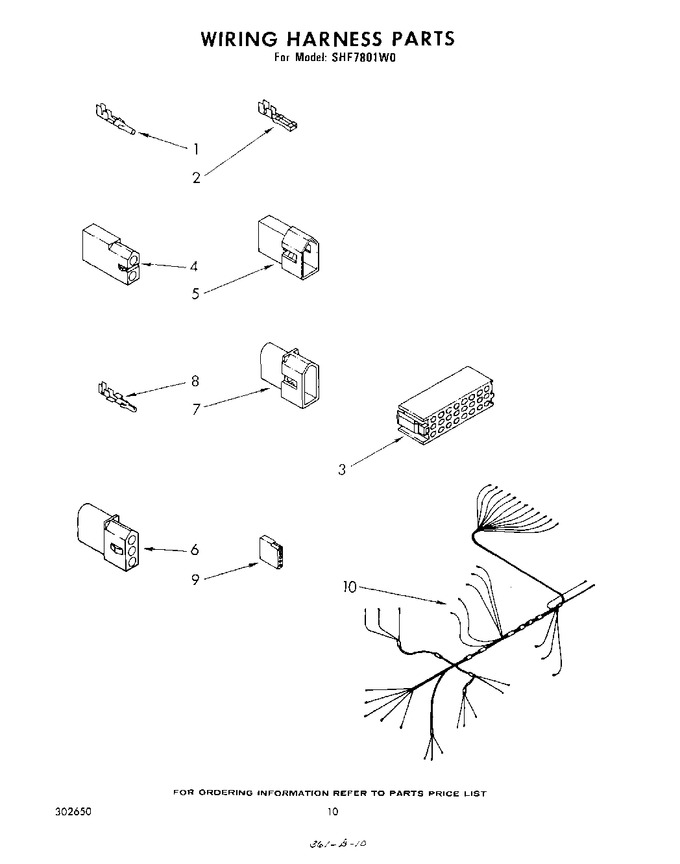

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
2	352088		Terminal, Female				$ 5.83
3	W10876590		Disconnect Block, Timer   (Replaces: 352089)				$ 11.48
4	717252		Receptacle, Terminal (2-way)		Appelez-nous	-
5	717253		Plug, Terminal		Appelez-nous	-
6	353425		Receptacle, Terminal (3-way)		Appelez-nous	-
7	353424		Plug, Terminal				$ 18.95
8	94613		Terminal		Appelez-nous	-
9	719585		Receptacle (5-circuit)		Appelez-nous	-
10	302177		Harness, Wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
