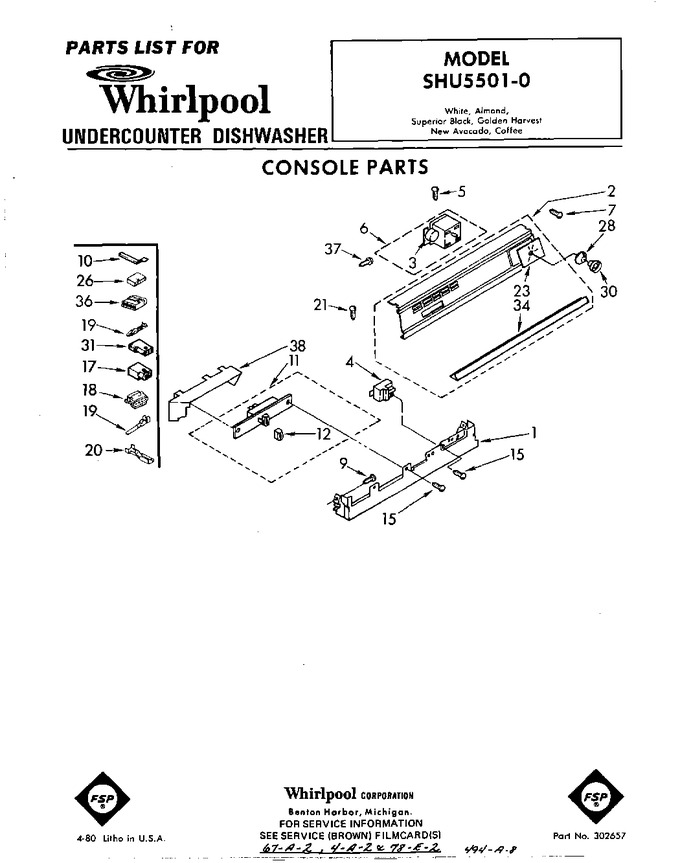

01 - Console


02 - Tub , Lit/optional


03 - Door


04 - Dishrack


05 - Pump And Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300754		Bracket, Control		Appelez-nous	-
2	302536		Console Assembly		Appelez-nous	-
3	301062		Motor, Timer		Appelez-nous	-
4	301620		Relay, Start (alternate)		Appelez-nous	-
4	301536		Relay, Start (alternate)		Appelez-nous	-
4	300516		Relay, Start (alternate)		Appelez-nous	-
5	WP356418		Screw   (Replaces: 96435)				$ 7.13
6	302571		Timer, Disconnect		Appelez-nous	-
7	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
9	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
10	302162		Clip, Harness		Appelez-nous	-
11	302076		Switch, Pushbutton		Appelez-nous	-
12	301977		Button (6)		Appelez-nous	-
15	WP489128		Screw,   (Replaces: 98209)				$ 9.79
17	717252		Receptacle, Terminal (timer Motor)		Appelez-nous	-
18	W10876590		Disconnect Block (black)   (Replaces: 352089)				$ 11.48
19	94613		Terminal, (male)		Appelez-nous	-
19	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
20	352088		Terminal, Female (disconnect Block)				$ 5.83
21	162400		Screw		Appelez-nous	-
23	302538		Insert		Appelez-nous	-
26	719585		Connector, Terminal (motor)		Appelez-nous	-
28	300996		Indicator, Dial		Appelez-nous	-
30	302541		Knob, Timer		Appelez-nous	-
31	353425		Receptacle (wetting Agent Dispenser)		Appelez-nous	-
34	301624		Trim, Console		Appelez-nous	-
36	300708		Block, Connector		Appelez-nous	-
37	WP488787		Screw, 8-18 X 1/2   (Replaces: 9418000)				$ 9.52
38	300242		Barrier, Pushbutton Switch		Appelez-nous	-
