SELECT A DIAGRAM

01 - Console

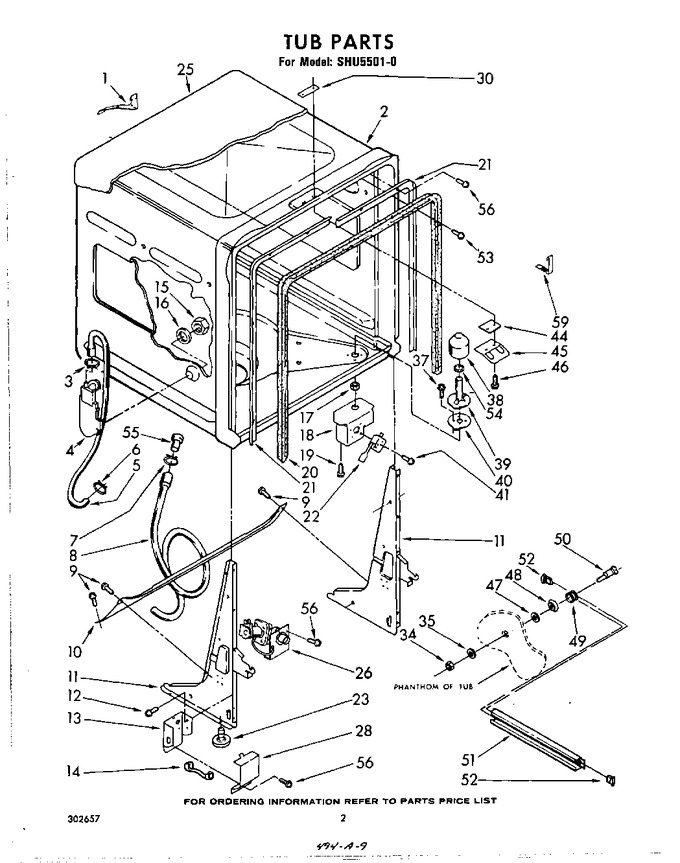

02 - Tub , Lit/optional


03 - Door


04 - Dishrack


05 - Pump And Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300796		Bracket, Mounting		Appelez-nous	-
2	302095		Tub Assembly		Appelez-nous	-
3	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
4	300974		Inlet, Water		Appelez-nous	-
5	301054		Hose, Inlet				$ 0.68
6	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.56
7	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
8	675544		Hose, Drain   (Replaces: 719954)			Immediately	$ 133.29
9	WP90767		Screw, Tapping (4)   (Replaces: 300890)			Immediately	$ 7.04
10	300739		Brace		Appelez-nous	-
11	718987		Leg & Hinge Assembly, (r.h.)		Appelez-nous	-
11	718988		Leg & Hinge Assembly, (l.h.)		Appelez-nous	-
12	718178		Screw, 8-32 X 3/8		Appelez-nous	-
13	300067		Box, Terminal		Appelez-nous	-
14	717563		Relief, Strain		Appelez-nous	-
15	713799		Nut, 7/8-16		Appelez-nous	-
16	713878		Gasket		Appelez-nous	-
17	717488		Nut, .125				$ 12.83
18	719342		Bracket, Overflow		Appelez-nous	-
19	718250		Screw, 8 X 1/2		Appelez-nous	-
20	302092		Gasket (alternate)		Appelez-nous	-
20	302090		Gasket (alternate)		Appelez-nous	-
20	302091		Gasket (alternate)		Appelez-nous	-
21	302093		Retainer (r.h.)		Appelez-nous	-
21	302094		Retainer (l.h.)		Appelez-nous	-
22	301672		Switch, Pressure (alternate)		Appelez-nous	-
22	301671		Switch, Pressure		Appelez-nous	-
23	719168		Screw, Leveling		Appelez-nous	-
25	W11086533		Shield, Sound   (Replaces: 300865)			Immediately	$ 28.17
26	DW-66		Valve, Water Inlet   (Replaces: 300453)				$ 63.58
28	300068		Cover, Terminal Box				$ 30.14
30	719455		Nut, Twin Spring		Appelez-nous	-
34	718829		Locknut (8)		Appelez-nous	-
35	717624		Washer (8)		Appelez-nous	-
37	WP488729		Screw, 8-18 X 1/2   (Replaces: 717236)			Immediately	$ 7.01
38	718035		Float		Appelez-nous	-
39	719967		Standpipe, Overflow		Appelez-nous	-
40	719966		Gasket, Overflow		Appelez-nous	-
41	98086		Screw, 4-40 X 3/4		Appelez-nous	-
44	712302		Shim		Appelez-nous	-
45	300233		Strike		Appelez-nous	-
46	WP308685		Screw, 10-12 X 1/2   (Replaces: 455524)			Immediately	$ 7.08
47	718750		Washer		Appelez-nous	-
48	718817		Washer, Cup		Appelez-nous	-
49	300844		Wheel Assembly		Appelez-nous	-
50	712499		Screw, Shoulder		Appelez-nous	-
51	300846		Track (2)		Appelez-nous	-
52	300845		End Cap, Track (4)				$ 7.63
53	719266		Screw, 8-18 X 5/8		Appelez-nous	-
54	301662		Gasket		Appelez-nous	-
55	301656		Insert, Cup-hose		Appelez-nous	-
56	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
59	302657		List, Parts		Appelez-nous	-
59	302166		Harness, Wiring		Appelez-nous	-
59	302080		Instructions, Installation		Appelez-nous	-
59	302753		Tag, Energy Fact		Appelez-nous	-
59	302017		Guide, Use & Care		Appelez-nous	-
59	301663		Clip, Gasket		Appelez-nous	-
59	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
59	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
59	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
59	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
59	261888		New Avocado		Appelez-nous	-
59	261890		Golden Harvest		Appelez-nous	-
59	261886		Coffee		Appelez-nous	-
59	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
59	350942		Primer (white)   (Replaces: 206922)				$ 80.69
59	206925		Leveler (thinner) (2 Oz.) Paint, Touch-up		Appelez-nous	-
59	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
59	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
59	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
59	799351		Thinner (1 Gal.)		Appelez-nous	-
59	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	261887		Xcoffee (uncut)		Appelez-nous	-
	261891		Xgolden Harvest (uncut)		Appelez-nous	-
	261889		Xnew Avocado (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
