SELECT A DIAGRAM

01 - Console


02 - Tub , Lit/optional


03 - Door


04 - Dishrack


05 - Pump And Motor

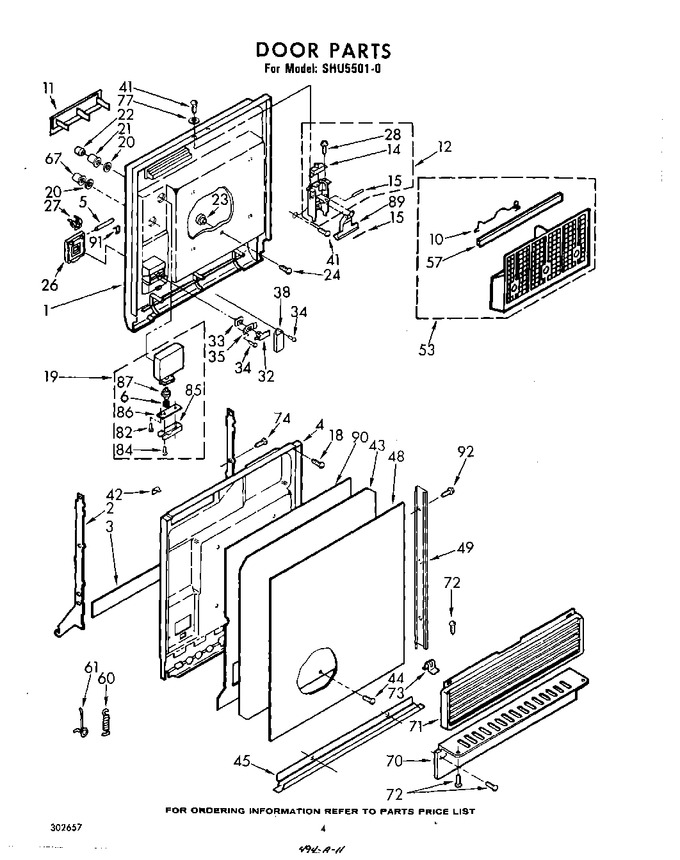

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302035		Door, Inner (includes Illus. 4)		Appelez-nous	-
2	301947		Support, Door (l.h.)		Appelez-nous	-
2	301946		Support, Door (r.h.)		Appelez-nous	-
3	717921		Gasket, Door		Appelez-nous	-
4	302031		Liner, Door		Appelez-nous	-
5	4387043		Pin, Lid Hinge   (Replaces: 300115)				$ 42.50
6	718592		Spring, Conical		Appelez-nous	-
10	300086		Handle, Basket		Appelez-nous	-
11	300246		Screen, Vent		Appelez-nous	-
12	300235		Latch Assembly		Appelez-nous	-
14	16600		Switch, Interlock   (Replaces: 300232)				$ 6.18
15	300234		Pin, Pivot		Appelez-nous	-
18	WP488729		Screw, 8 X 1/2   (Replaces: 301458)			Immediately	$ 7.01
19	719341		Dispenser, Wetting Agent		Appelez-nous	-
20	713080		Washer		Appelez-nous	-
21	718575		Nut, 1-14		Appelez-nous	-
22	718577		Cap		Appelez-nous	-
23	300239		Button, Retainer		Appelez-nous	-
24	300250		Screw, 8-18 X 3/8		Appelez-nous	-
26	4387043		Lid, Detergent Dispenser Assembly   (Replaces: 300155)				$ 42.50
27	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.15
28	301582		Screw, 6-32 X 1		Appelez-nous	-
32	300119		Lever, Catch		Appelez-nous	-
33	300105		Seal, Lever				$ 5.70
34	718250		Screw, 8 X 1/2		Appelez-nous	-
35	300104		Retainer, Seal		Appelez-nous	-
38	300109		Actuator		Appelez-nous	-
41	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
42	301058		Clip, Retainer		Appelez-nous	-
43	301959		Barrier, Panel		Appelez-nous	-
44	WP488787		Screw, 8-18 X 1/2   (Replaces: 9418000)				$ 9.52
45	301971		Panel Edging, Door		Appelez-nous	-
48	N/A		Panel, Front		Appelez-nous	-
49	301956		Trim, Door		Appelez-nous	-
53	301994		Silverware Basket Assembly		Appelez-nous	-
57	717528		Trim, Basket		Appelez-nous	-
60	716425		Spring, Door		Appelez-nous	-
61	716401		Retainer, Spring				$ 35.28
67	718576		Cap, Drip		Appelez-nous	-
70	717968		Plate, Toe		Appelez-nous	-
71	302135		Panel, Access		Appelez-nous	-
72	WP90767		Screw, Tapping   (Replaces: 300890)			Immediately	$ 7.04
73	718607		Clip		Appelez-nous	-
74	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
77	300237		Washer		Appelez-nous	-
82	WP98165		Screw   (Replaces: 98165)				$ 7.20
84	WP488163		Screw, 8-18 X 1/2   (Replaces: 98810)				$ 6.79
85	718646		Acutator Assembly		Appelez-nous	-
86	718596		Plate		Appelez-nous	-
87	718595		Diaphragm Assembly		Appelez-nous	-
89	300230		Lever, Release		Appelez-nous	-
90	301957		Spacer		Appelez-nous	-
91	301857		Clip, Wire		Appelez-nous	-
92	302251		Screw, 8 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
