SELECT A DIAGRAM
01 - Cabinet, Lit/optional

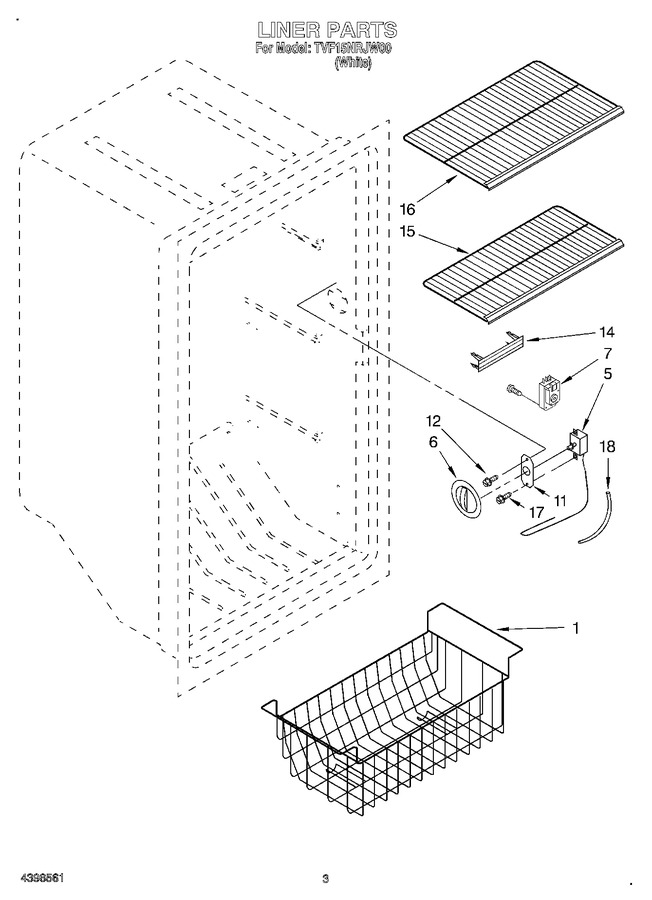

02 - Liner
03 - Door
04 - Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390621 | Basket |
|
- | |||||
| 5 | WP4-83053-003 | Thermostat (Replaces: 4356988) |
|
$ 218.54 | |||||
| 6 | 4357292 | Knob, Thermostat |
|
- | |||||
| 7 | WP3-81329 | Timer, Defrost (Replaces: 4357124) |
|
Immediately | $ 170.69 | ||||
| 11 | 1-81154 | Thermostat, Plate (Replaces: 4357287) |
|
$ 12.86 | |||||
| 12 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 3.66 | |||||
| 14 | WP3-80414-103 | Vent Plug (Replaces: 4357295) |
|
$ 11.57 | |||||
| 15 | 4-82314-001 | Shelf, Lower (Replaces: 4357172) |
|
$ 114.89 | |||||
| 16 | 4-82315-001 | Shelf, Upper (Replaces: 4357171) |
|
$ 302.10 | |||||
| 17 | W11233072 | Screw (Replaces: 4357043) |
|
Immediately | $ 12.62 | ||||
| 18 | WP2196003 | Tubing, Thermostat (Replaces: 4356800) |
|
$ 7.16 |
