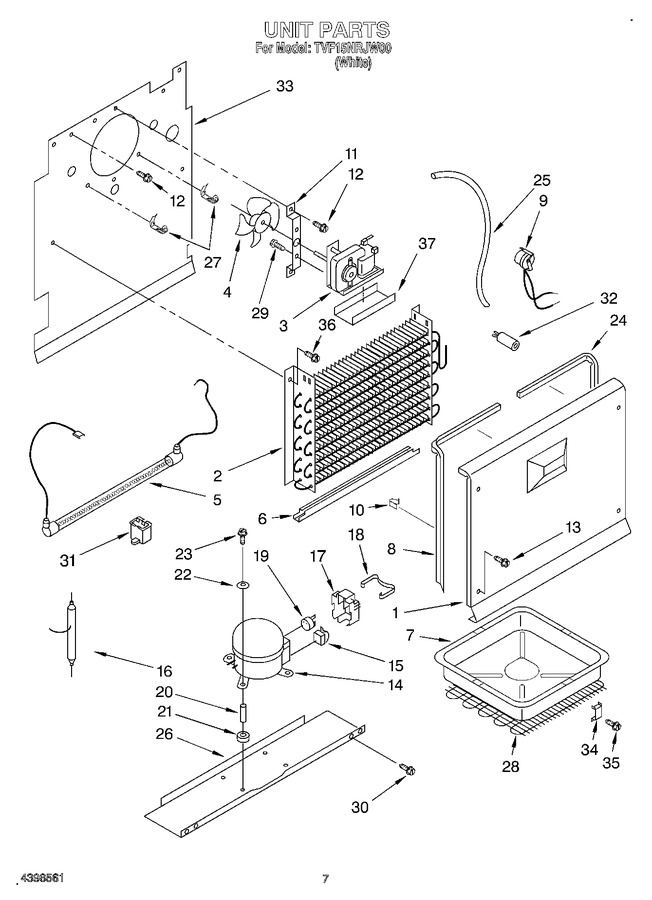

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390652		Cover, Evaporator		Appelez-nous	-
2	WP4-81546		Evaporator   (Replaces: 4357244)				$ 385.21
3	4357004		Fan Motor		Appelez-nous	-
4	WPW10445742		Fan Blade   (Replaces: 4356920)			Immediately	$ 9.05
5	W11175809		Heater Defrost   (Replaces: 4356923)			Immediately	$ 157.81
6	4357254		Shield, Heater		Appelez-nous	-
7	4357253		Drain Pan		Appelez-nous	-
8	4390654		Gasket, Cover Evaporator		Appelez-nous	-
9	4356928		Bi-metal Defrost		Appelez-nous	-
10	4356941		Clip		Appelez-nous	-
11	2-80028-101		Bracket, Motor   (Replaces: 4357256)				$ 84.58
12	WP3400094		Screw, Motor   (Replaces: 4356970)				$ 7.14
13	WP3-24004-109		Screw (4)   (Replaces: 4357110)				$ 7.25
14	W10309994		Compressor (includes Items 15 16, 17, 18 & 19)   (Replaces: 4390638)			Immediately	$ 551.61
15	4356730		Relay				$ 55.97
16	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
17	4356946		Cover		Appelez-nous	-
18	4356951		Clip		Appelez-nous	-
19	4356661		Overload		Appelez-nous	-
20	4356846		Sleeve				$ 12.86
21	4356335		Compressor Grommet		Appelez-nous	-
22	4356847		Washer		Appelez-nous	-
23	4356852		Screw, Compressor				$ 6.57
24	4390655		Gasket, Cover Evaporator		Appelez-nous	-
25	WP4357245		Heat, Exchanger   (Replaces: 4357177)			Immediately	$ 243.64
26	4357257		Compressor Pan		Appelez-nous	-
27	4356952		Thermostat, Clip		Appelez-nous	-
28	4357291		Condenser		Appelez-nous	-
29	60001022		Screw   (Replaces: 4356943)				$ 56.93
30	WP3-24838-048		Screw   (Replaces: 4357277)				$ 7.00
31	WPW10662129		Capacitor   (Replaces: 4357094)			Immediately	$ 52.97
32	4357020		Grommet		Appelez-nous	-
33	4357123		Plate, Evaporator Mount		Appelez-nous	-
34	4357252		Bracket		Appelez-nous	-
35	WP489478		Screw   (Replaces: 4357243)				$ 6.98
36	4357139		Screw				$ 6.57
37	4357128		Shield, Motor   (Replaces: 4357255)				$ 97.89
