SELECT A DIAGRAM

01 - Cabinet, Lit/optional


02 - Liner


03 - Door


04 - Unit

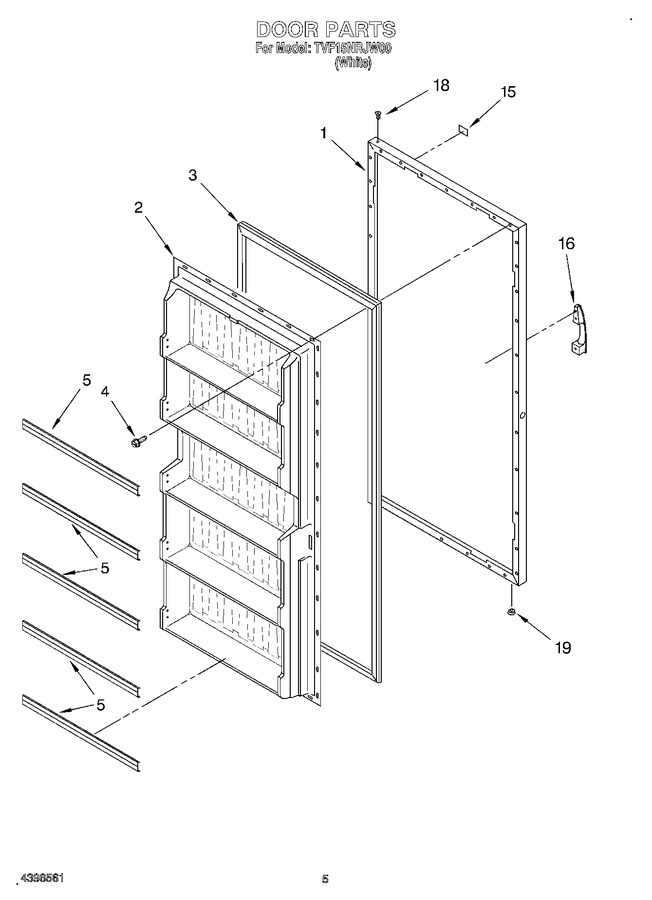

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390640		Exterior Door (includes Insulation)		Appelez-nous	-
2	4390642		Interior Panel		Appelez-nous	-
3	WP4357099		Door Gasket   (Replaces: 4357099)				$ 290.47
4	4390598		Screw   (Replaces: 4357290)				$ 18.89
5	4390608		Trim Shelf				$ 45.37
15	4356705		Nameplate		Appelez-nous	-
16	4390641		Handle		Appelez-nous	-
18	4356811		Bushing, Hinge		Appelez-nous	-
19	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 9.72

    View Diagram in Separate Window       Print Part List
