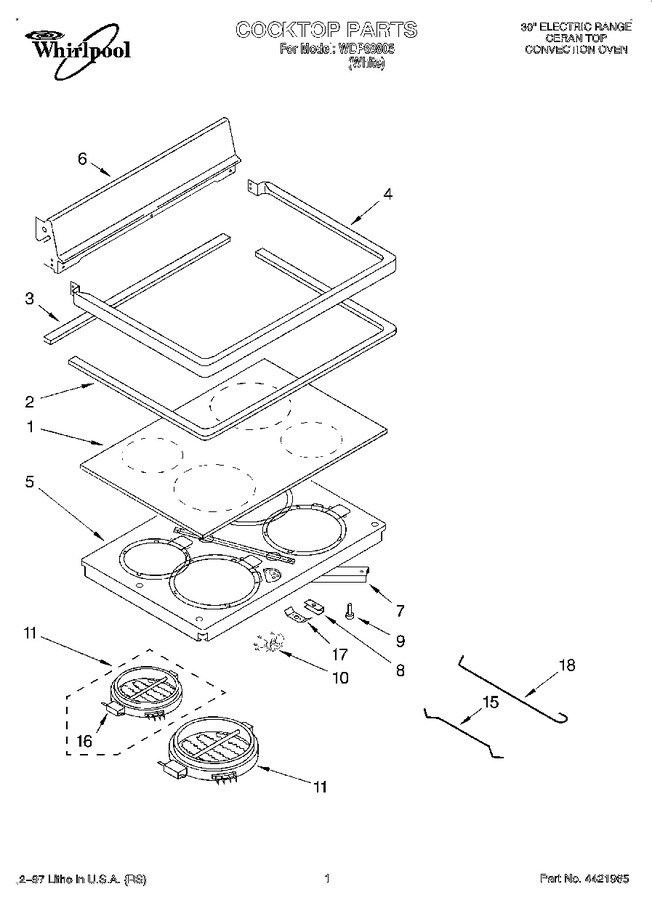

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9781098		Cooktop, Ceran		Appelez-nous	-
2	WP9780939		Gasket, Cooktop (front & Sides)   (Replaces: 9780939)			Immediately	$ 60.83
3	9780742		Rear Gasket		Appelez-nous	-
4	4212024		Frame, Cooktop		Appelez-nous	-
4	3149333		Screw (4) 10 X 1/2				$ 5.33
5	9781549		Support, Element		Appelez-nous	-
6	3149333		Screw (4) 10 X 1/2				$ 5.33
6	4211921		Back Splash		Appelez-nous	-
7	9780272		Screw (2) 10 X 3/4``		Appelez-nous	-
7	9781553		Brace, Support		Appelez-nous	-
8	423248		Screw, (4) 10 X 3/4``		Appelez-nous	-
8	9750821		Support Clips (4)		Appelez-nous	-
9	238614		Bumper-white (4)   (Replaces: 9750969)				$ 72.68
10	9781497		Hot Light		Appelez-nous	-
11	3189894		Element, Surface (1400w - Lr)		Appelez-nous	-
11	3189895		Element, Surface (1700w - Rf)		Appelez-nous	-
11	3189896		Element, Surface (2200w - Rr)		Appelez-nous	-
11	3189897		Element, Surface (2400w - Lf)		Appelez-nous	-
15	9781460		Rod, Small Ceran Element		Appelez-nous	-
16	3190251		Limiter, Temp. (2400 W - Lf)		Appelez-nous	-
16	3190250		Limiter, Temp (1700w - Rf)		Appelez-nous	-
16	3190253		Limiter, Temp. (1400 W - Lr)		Appelez-nous	-
16	3190252		Limiter, Temp. (2200w - Rr)		Appelez-nous	-
17	WP9781235		Screw, Anchor   (Replaces: 9781235)				$ 10.76
18	9781459		Rod, Large Ceran Element		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
