SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Lit/optional

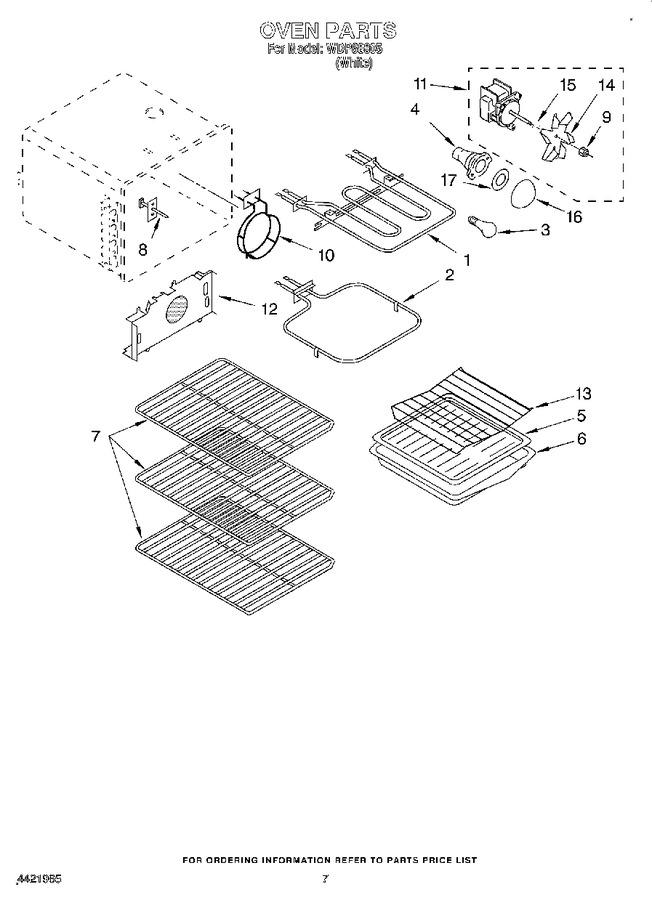

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750211		Element, Broil				$ 85.64
2	UB417		Element, Bake   (Replaces: 9750417)			Immediately	$ 56.69
2	9781509		Screw, Elements 8-32 X 3/8		Appelez-nous	-
2	340184		Screw, Element 10 X 1 1/2				$ 12.10
3	40A15		Bulb, Oven   (Replaces: 4211947)			Immediately	$ 1.98
4	W11594027		Socket, Light   (Replaces: 9781050)			Immediately	$ 78.31
5	4211969		Grill, Broiler		Appelez-nous	-
6	4396923		Pan, Broiler   (Replaces: 4211965)			Immediately	$ 52.04
7	9750823		Rack, Standard (3)		Appelez-nous	-
8	3148440		Safety Therm.		Appelez-nous	-
8	9781509		Screw		Appelez-nous	-
9	4173237		Nut		Appelez-nous	-
10	WPW10280189		Element, Convection   (Replaces: 9751447)				$ 295.73
10	9780269		Screw, (3) 8 X 3/8		Appelez-nous	-
11	9781543		Fan, Convection (assembly)				$ 142.09
11	9781073		Screw, (3) 10 X 1/2		Appelez-nous	-
12	9780270		Screw, (4) 8 X 3/8		Appelez-nous	-
12	9751904GM		Baffle, Convection		Appelez-nous	-
13	9750827		Rack, Roasting		Appelez-nous	-
14	9751117		Fan		Appelez-nous	-
15	4173238		Shim Ring		Appelez-nous	-
16	WP9781049		Lens, Light   (Replaces: 9781049)			Immediately	$ 71.93
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
17	978883		Almond (uncut)		Appelez-nous	-
17	261891		Harvest Gold (uncut)		Appelez-nous	-
17	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
17	285368		Platinum (uncut)		Appelez-nous	-
17	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
17	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
17	9750222		Insulation, Wrap		Appelez-nous	-
17	9750221		Insulation, Rear		Appelez-nous	-
17	CERAMABRYTE		Glass Cleaner   (Replaces: 9780196)			Immediately	$ 9.95
17	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
17	261582		Grease		Appelez-nous	-
17	350942		Primer (white)   (Replaces: 206922)				$ 80.69
17	WA906B		Scraper   (Replaces: 3183488)			Immediately	$ 4.86
17	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
17	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
17	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
17	WP3184533		Gasket, Len`s   (Replaces: 3184533)			Immediately	$ 7.73
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
17	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
17	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
17	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
17	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
17	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
17	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
17	261888		New Avocado		Appelez-nous	-
17	261886		Coffee		Appelez-nous	-
17	261890		Harvest Gold		Appelez-nous	-
17	285365		Toast		Appelez-nous	-
17	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
17	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
	9781302		Harness, Wire (flourescent)		Appelez-nous	-
	9781298		Pilot Leads		Appelez-nous	-
	9781283		Harness, Wire (timer)		Appelez-nous	-
	9781568		Harness, Wire (cooktop)		Appelez-nous	-
	9752368		Harness, Wire (convection Fan)		Appelez-nous	-
	9781542		Harness, Wire Jumper, 5 Terminal		Appelez-nous	-
	9781541		Harness, Wire (w/o Fuses)		Appelez-nous	-
	9781291		Harness, Wire Outlet		Appelez-nous	-
	WPW10339879		Tie, Wire   (Replaces: 20082084)				$ 7.11
	9750984		Hanger, Cable		Appelez-nous	-
	PT600		Cord, Power   (Replaces: 9781287)			Immediately	$ 44.31
	9781286		Jumper, Neutral		Appelez-nous	-
	9750744		Harness, Wire (door Switch)		Appelez-nous	-
	9781216		Harness, Wire (door Sensor)		Appelez-nous	-
	LIT3189918		Use & Care Guide		Appelez-nous	-
	LIT3189972		Wiring Diagram		Appelez-nous	-
	LIT3189887		Instruction Label (lamp Cover)		Appelez-nous	-
	LIT3189919		Use & Care Guide (french)		Appelez-nous	-
	LIT424968		Cookbook, T/c		Appelez-nous	-
	LIT9780959		Cookbook, (convection)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
