SELECT A DIAGRAM

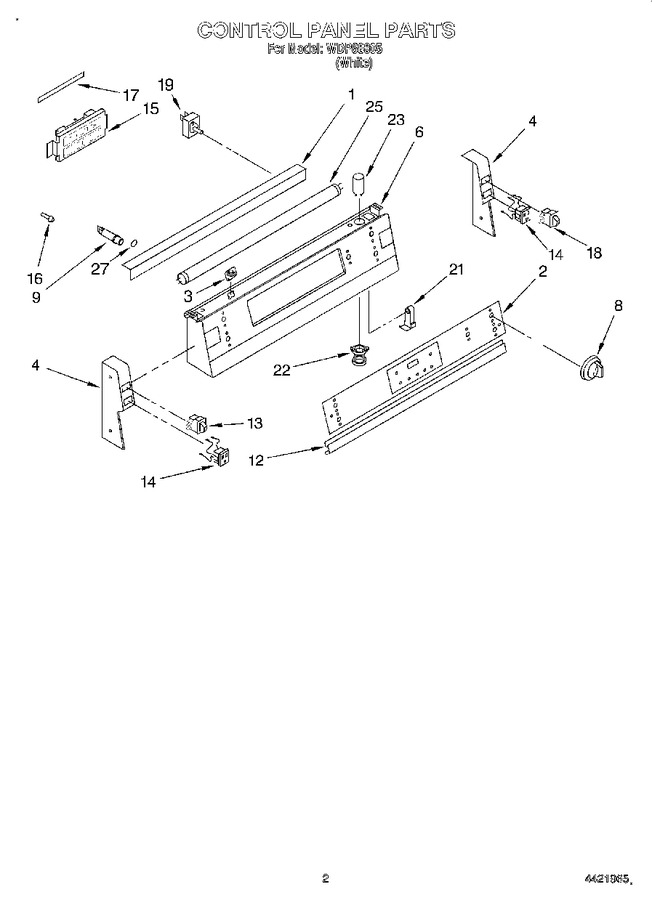

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4212037		Lamp Cover		Appelez-nous	-
2	9751386		Console-glass (control Panel)		Appelez-nous	-
3	3190699		Screw		Appelez-nous	-
3	4166262		Nut		Appelez-nous	-
3	3190051		Fuse Holder		Appelez-nous	-
4	9780265		End Cap (screw, (2) 10 X 3/8)		Appelez-nous	-
4	4212031		End Cap (left)		Appelez-nous	-
4	4212032		End Cap (right)		Appelez-nous	-
6	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
6	3189890		Panel, Control		Appelez-nous	-
8	4212038		Knobs, Control		Appelez-nous	-
9	3190052		Light, Indicator (burners) (4)		Appelez-nous	-
12	4212035		Trim Strip		Appelez-nous	-
13	9750861		Switch, Oven Light		Appelez-nous	-
14	9751480FW		Outlet, Untimed		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
15	9751348		Oven Control (timer Assembly)		Appelez-nous	-
16	4212033		Button, Timer		Appelez-nous	-
17	9750961		Top Tape		Appelez-nous	-
18	9750856		Switch, Lamp		Appelez-nous	-
19	WP3400882		Infinite Switch (screw (8) 8-32 X 3/16)   (Replaces: 3400816)			Immediately	$ 6.47
19	9750644		Infinite Switch (1400w (2))				$ 53.99
19	WP9750646		Infinite Switch (2400w (2))   (Replaces: 9750646)			Immediately	$ 88.82
21	9750273		Receptacle, Lamp		Appelez-nous	-
22	9750866		Starter, Holder		Appelez-nous	-
23	9781118		Starter, Light		Appelez-nous	-
25	WP95292		Light, Fluorescent   (Replaces: 422581)			Immediately	$ 121.45
27	9780800		Seal, Light (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
