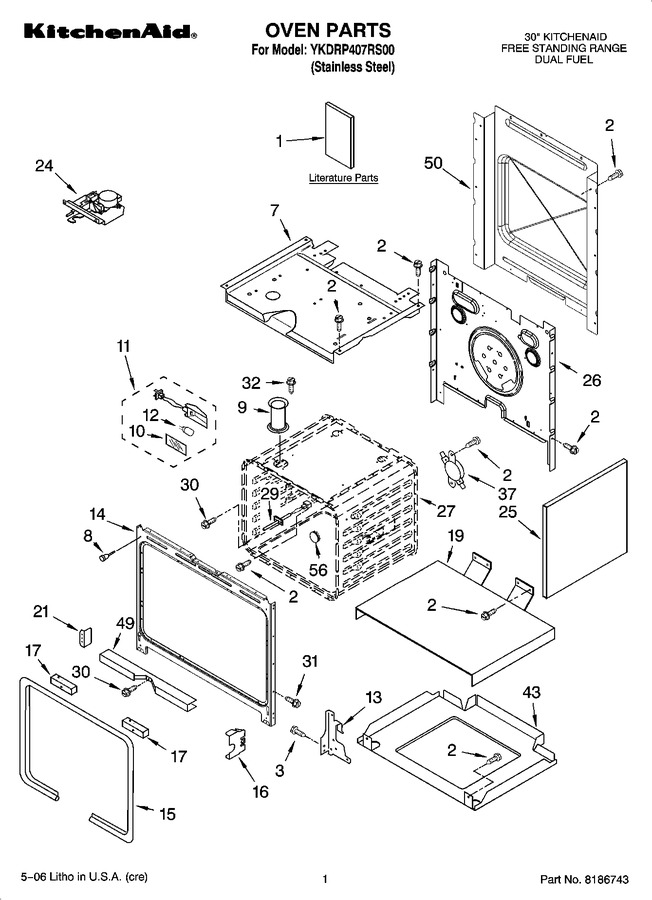

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9759536 | Installation Instructions |
|
- | |||||
| 1 | W10086260 | Use & Care Guide |
|
- | |||||
| 1 | 9759534 | Tech Sheet |
|
- | |||||
| 1 | 9759441 | Conversion Instructions |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 3 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.47 | |||||
| 7 | 9758832 | Top, Chassis |
|
- | |||||
| 8 | 4448520 | Bumper, Door |
|
$ 19.07 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 104.97 | |||||
| 10 | 4452163 | Lens, Light |
|
$ 12.33 | |||||
| 11 | WP4448972 | Oven Light Assy (Replaces: 4448972) |
|
$ 98.46 | |||||
| 12 | WP4452164 | Bulb, Light (Replaces: 4452164) |
|
Immediately | $ 60.59 | ||||
| 13 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 13 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 14 | 9762237 | Frame, Front |
|
- | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 62.78 | ||||
| 16 | 4452152 | Bracket, Mounting |
|
$ 30.15 | |||||
| 17 | 4452260 | Spacer, Foam |
|
- | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 21 | 4455510 | Bracket, Support |
|
- | |||||
| 24 | WP9760889 | Latch, Motorized (Replaces: 9760889) |
|
Immediately | $ 295.79 | ||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 129.16 | |||||
| 26 | 9758830 | Back, Chassis |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 86.25 | ||||
| 30 | WP4449154 | Screw, 8-32 X .440 (Replaces: 4449154) |
|
$ 6.80 | |||||
| 31 | WP4449040 | Screw, 8-18 X 3/8 (Replaces: 4449040) |
|
$ 6.78 | |||||
| 32 | W11233072 | Screw, 8-18 X 1/2 (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 37 | WP4450249 | Thermostat (tod) (temp.) Spst (Replaces: 4450249) |
|
Immediately | $ 181.29 | ||||
| 43 | 4455649 | Base, Chassis |
|
- | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 7.97 | |||||
| 50 | 9758583 | Cover, Back |
|
$ 215.30 | |||||
| 56 | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| 56 | 4448982 | Button, Plug |
|
- | |||||
| 56 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 107.01 |
