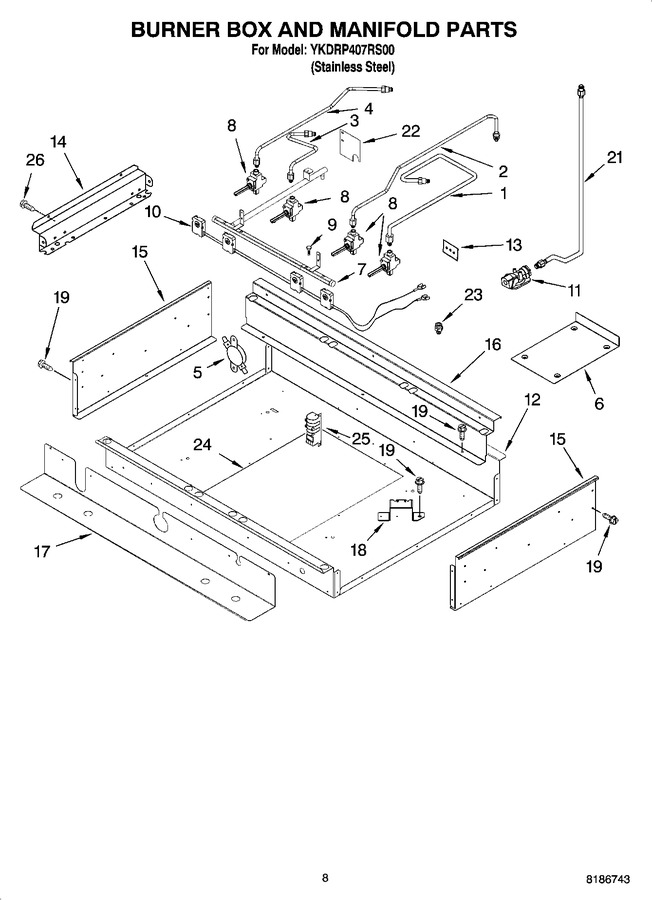

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4457272 | Tubing, Gas Burner - Rf |
|
- | |||||
| 2 | 4457273 | Tubing, Gas Burner - Rr |
|
- | |||||
| 3 | 4457274 | Tubing, Gas Burner - Lf |
|
- | |||||
| 4 | 4457275 | Tubing, Gas Burner - Lr |
|
- | |||||
| 5 | WPW10017820 | Thermostat (tod) Spst, 65c (Replaces: W10017820) |
|
$ 194.84 | |||||
| 6 | W10024070 | Shield, Heat |
|
- | |||||
| 7 | 4457267 | Manifold |
|
$ 218.99 | |||||
| 8 | 4456818 | Valve, Burner |
|
$ 231.30 | |||||
| 9 | 3186217 | Bolt, Gas Valve |
|
$ 5.53 | |||||
| 10 | 4457173 | Burner Switch & Harness Assembly |
|
$ 88.71 | |||||
| 10 | WP3188425 | Seal, Switch (Replaces: 3191387) |
|
$ 82.61 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 9759091) |
|
Immediately | $ 291.80 | ||||
| 12 | 9762134 | Box, Burner |
|
- | |||||
| 13 | W10491984 | Seal, Switch (Replaces: 3192439) |
|
$ 10.33 | |||||
| 14 | 4457220 | Support, Cooktop (l.side) |
|
- | |||||
| 14 | 4452442 | Support, Cooktop (r.side) |
|
- | |||||
| 15 | 8285607 | Side, Burner Box (right Side) |
|
- | |||||
| 15 | 8285606 | Side, Burner Box (left Side) |
|
- | |||||
| 16 | 4457315 | Support, Rear |
|
- | |||||
| 17 | 9760557 | Support, Cooktop |
|
- | |||||
| 18 | 3192811 | Bracket, Burner |
|
- | |||||
| 19 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 21 | 4455645 | Tube, Manifold |
|
- | |||||
| 22 | 9762133 | Cover, Manifold |
|
- | |||||
| 23 | 4453116 | Adapter (1/2`` Female) |
|
$ 153.80 | |||||
| 23 | 4453115 | Adapter (1/2`` Male) |
|
$ 108.60 | |||||
| 23 | WP4450118 | Adapter (nut, 6-32 U Type) (Replaces: 4450118) |
|
$ 7.16 | |||||
| 24 | 4453036 | Cover, Burner Box |
|
- | |||||
| 25 | WPW10110491 | Module, Spark (Replaces: 8522426) |
|
Immediately | $ 276.35 | ||||
| 26 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 |
