Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9758955 Vent, Exhaust Appelez-nous -
2 9758954 Vent-top Appelez-nous -
3 9759837 Blower 60mm Special Order $ 279.73

4 9758953 Vent-bottom Appelez-nous -
5 WP9760588 Transformer, Light   (Replaces: 9760588) Special Order $ 237.07

6 8300642 Transformer, Control Appelez-nous -
7 WP4449809 Screw, 8-18 X 3/8   (Replaces: 4449809) In-Stock Immediately $ 6.47

8 9758956 Bracket, Blower Appelez-nous -
11 WP8203546 Block, Terminal   (Replaces: 4449868) In-Stock Immediately $ 27.12

12 9759149 Control, Zodiac Special Order $ 321.24

13 WP4451985 Suppressor   (Replaces: 4451985) Special Order $ 148.69

14 W11684512 Screw (4)   (Replaces: 3400080) Special Order $ 12.69

21 W10491987 Seal, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

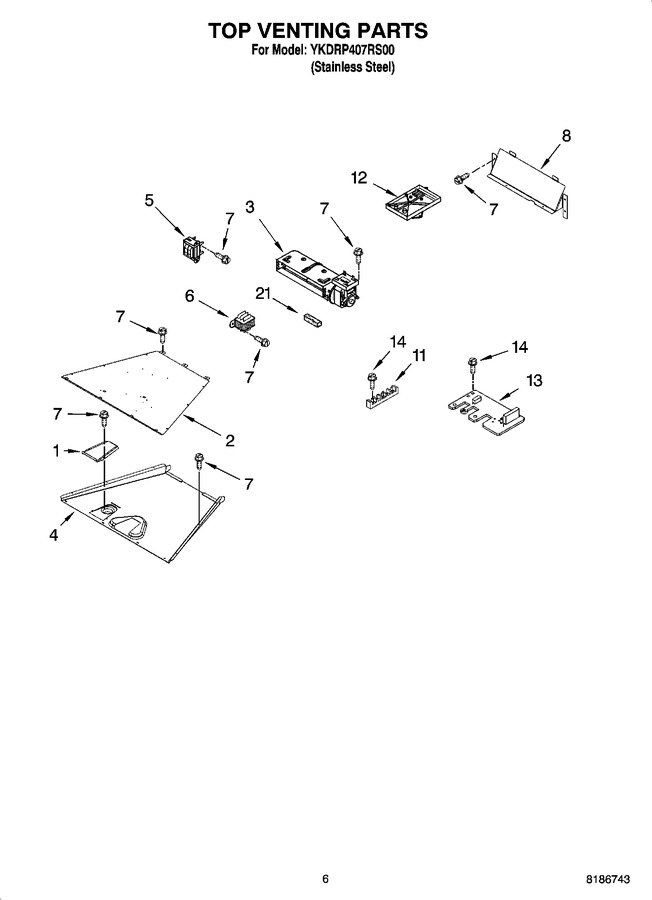

Diagram for YKDRP407RS00
