SELECT A DIAGRAM

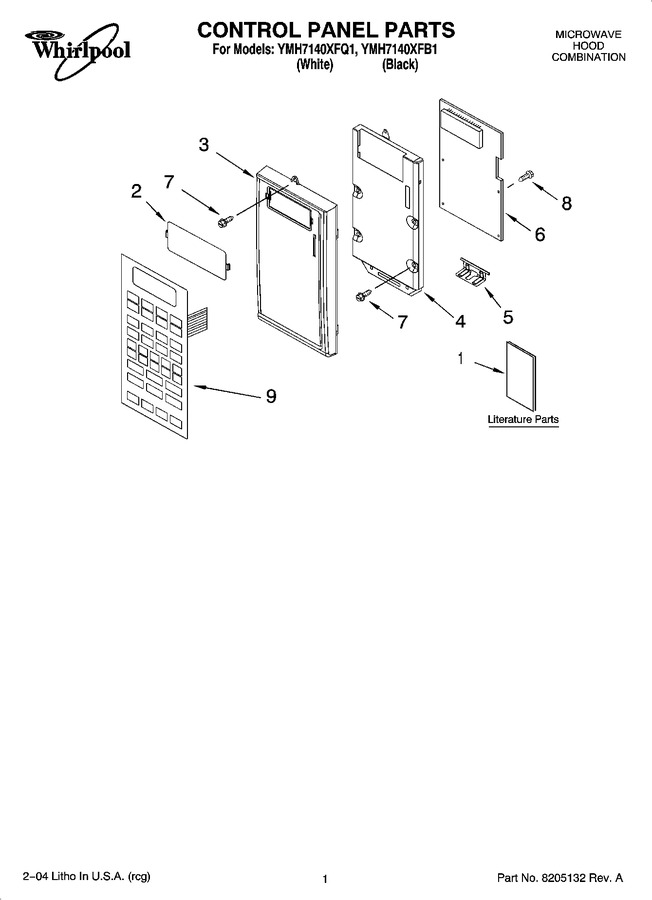

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8204735 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT8183732 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8169722 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8169571 | Literature Parts (english) |
|
- | |||||
| 1 | LIT8169296 | Literature Parts (french) |
|
- | |||||
| 2 | 4393905 | Lens |
|
- | |||||
| 3 | 8183926 | Panel, Control (white) |
|
- | |||||
| 3 | 8183927 | Panel, Control (black) |
|
- | |||||
| 4 | 8183821 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8169717 | Pcb Assembly |
|
- | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- | |||||
| 9 | 8169452 | Switch, Membrane (white) |
|
- | |||||
| 9 | 8169453 | Switch, Membrane (black) |
|
- |
