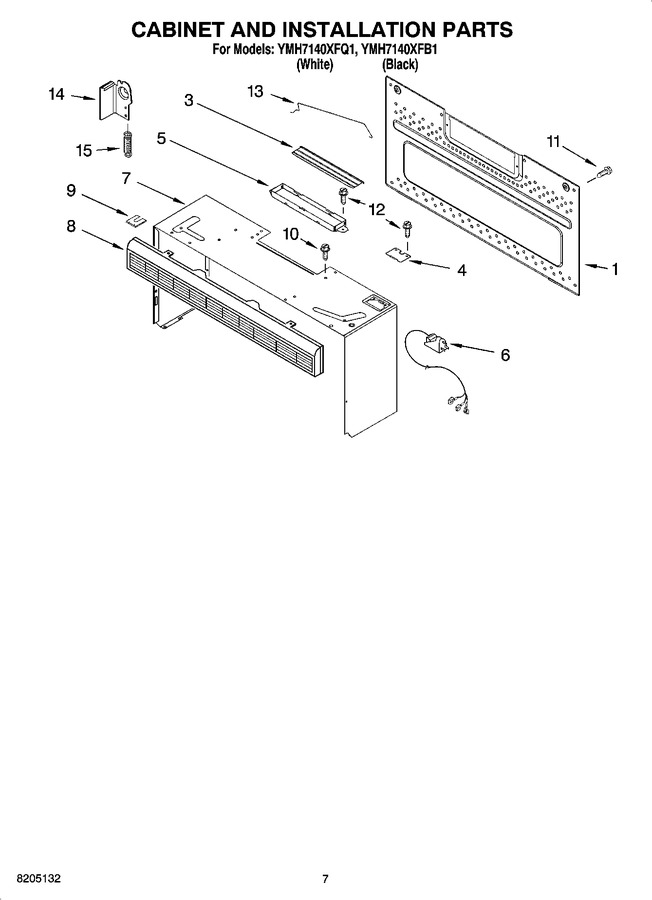

06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8206174 | Plate, Mounting (Replaces: 8169666) |
|
$ 30.99 | |||||
| 3 | W10843943 | Damper, Exhaust (Replaces: 4393713) |
|
Immediately | $ 65.74 | ||||
| 4 | 4393714 | Lid, Power Cord |
|
- | |||||
| 5 | W10843943 | Exhaust, Damper (Replaces: 4393715) |
|
Immediately | $ 65.74 | ||||
| 6 | 8169432 | Cord, Power |
|
$ 150.69 | |||||
| 7 | 8169503 | Case, Outer (black) |
|
- | |||||
| 7 | 8169502 | Case, Outer (white) |
|
- | |||||
| 8 | 8183851 | Grille, Vent (black) |
|
Immediately | $ 82.20 | ||||
| 8 | 8183948 | Grille, Vent (white) |
|
$ 78.26 | |||||
| 9 | 8206334 | Grille, Holder (Replaces: 4393795) |
|
$ 6.47 | |||||
| 10 | WP4393834 | Screw (Replaces: 4393834) |
|
$ 6.47 | |||||
| 11 | 4393839 | Screw |
|
- | |||||
| 12 | 4393828 | Screw |
|
- | |||||
| 13 | 8169318 | Rod |
|
- | |||||
| 14 | 8185033 | Catch |
|
- | |||||
| 15 | 8169374 | Spring |
|
- | |||||
| 4393757 | Installation, Hardware |
|
- | ||||||
| 4158439 | Filler Kit (white) |
|
- | ||||||
| 4158311 | Filler Kit (black) |
|
- | ||||||
| 4393826 | Rack |
|
- | ||||||
| 8185494 | Template, Upper |
|
- | ||||||
| 8169765 | Template - Wall |
|
- |
