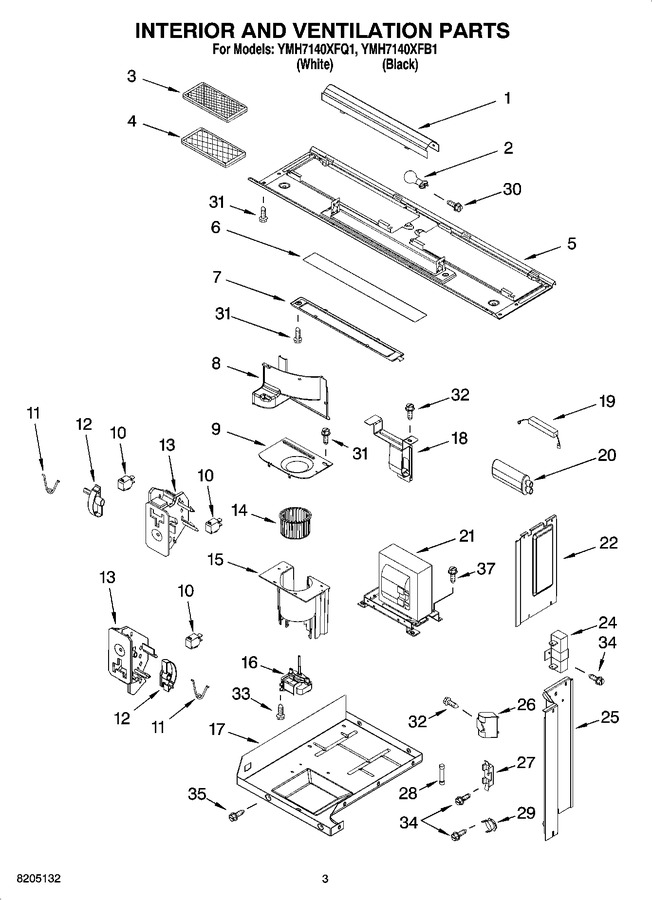

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4393688		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp (2)   (Replaces: 4393681)			Immediately	$ 6.61
3	6800		Filter, Charcoal   (Replaces: 8169645)			Immediately	$ 26.06
4	6802A		Filter, Grease   (Replaces: 4393790)			Immediately	$ 28.96
5	8169407		Plate, Bottom		Appelez-nous	-
6	8169546		Glass, Lamp		Appelez-nous	-
7	8169316		Holder, Glass		Appelez-nous	-
8	8183699		Guide, Air (magnetron)		Appelez-nous	-
9	8183823		Cover, Fan		Appelez-nous	-
10	W10211972		Switch, Micro (3)   (Replaces: 4393697)			Immediately	$ 47.16
11	8169438		Spring, Interlock (2)				$ 10.69
12	8183824		Plate, Cam (2)				$ 5.70
13	8205572		Support, Interlock (2)   (Replaces: 4393595)				$ 6.26
14	8183825		Wheel, Fan				$ 33.72
15	8183702		Housing, Fan		Appelez-nous	-
16	8183826		Motor, Fan		Appelez-nous	-
17	8183827		Chassis		Appelez-nous	-
18	4393702		Holder, Capacitor		Appelez-nous	-
19	W11256462		Rectifier, H.v.   (Replaces: 4393600)			Immediately	$ 29.88
20	8206562		Capacitor, H.v.   (Replaces: 8169361)			Immediately	$ 108.83
21	8169698		Transformer, H.v.		Appelez-nous	-
22	8183829		Plate, Side (r)		Appelez-nous	-
24	4393707		Resistor, Ceramic		Appelez-nous	-
25	8169470		Plate, Side (l)		Appelez-nous	-
26	4393709		Capacitor				$ 8.10
27	4393538		Holder, Fuse		Appelez-nous	-
28	W11707984		Fuse   (Replaces: 4393308)			Immediately	$ 41.27
29	8183703		Thermostat		Appelez-nous	-
30	8169474		Screw				$ 8.51
31	4393835		Screw				$ 11.83
32	4393472		Screw		Appelez-nous	-
33	4393833		Screw				$ 6.79
34	8169478		Screw		Appelez-nous	-
35	8169475		Screw				$ 6.64
37	4393839		Screw		Appelez-nous	-
