02 - Backguard
03 - Main Top
04 - Burner
05 - Body
06 - Oven Door
07 - Rotisserie , Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

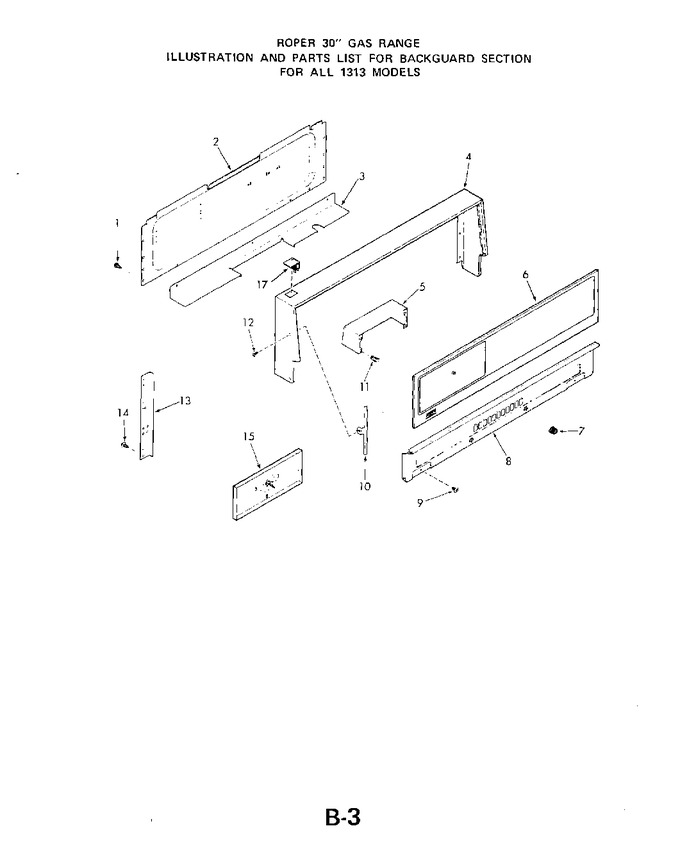

| 1 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 2 | 323295 | Wire Cover-backguard |
|
- | |||||
| 3 | 296569 | Bottom-backguard Wire Cover |
|
- | |||||
| 4 | 307407 | Frame-backguard |
|
- | |||||
| 5 | 293560 | Mounting Bracket-clock |
|
- | |||||
| 6 | 322806 | Glass-backguard |
|
- | |||||
| 7 | 294810 | Knob-clock |
|
- | |||||
| 8 | 307717 | Front-backguard Bottom |
|
- | |||||
| 9 | 295268 | Screw 6-32x3/8`` |
|
- | |||||
| 10 | 299705 | End Trim-backguard Glass (lt Or Rt) |
|
- | |||||
| 11 | 293577 | Tubular Clip |
|
- | |||||
| 12 | 295268 | Screw 6-32x3/8`` |
|
- | |||||
| 13 | 319361 | Support-backguard (lt. Or Rt.) |
|
- | |||||
| 14 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 15 | 322804 | Clock W/4 Hr.timer |
|
- | |||||
| 17 | 308974 | Switch-oven Light |
|
- |
