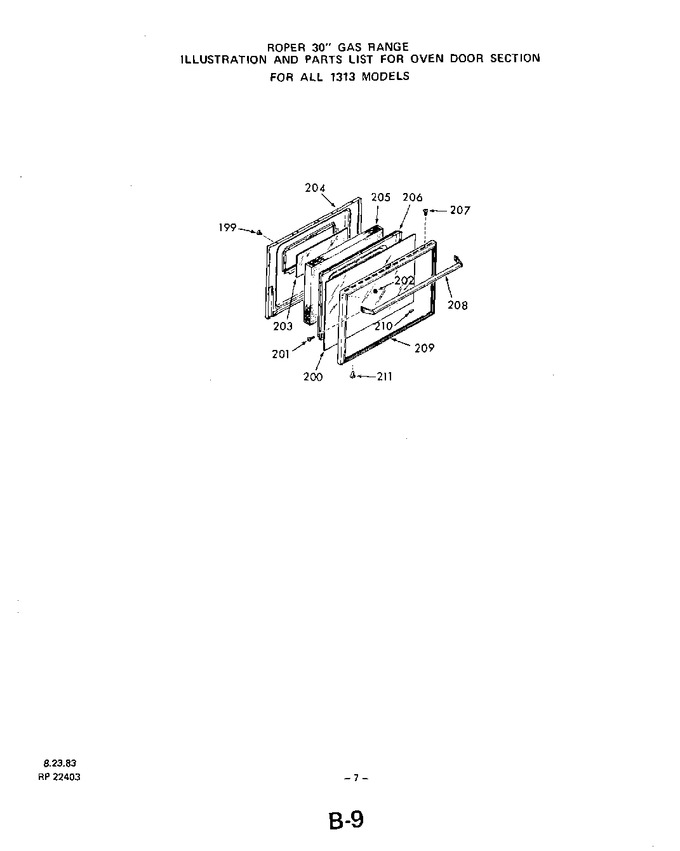

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 199 | WPY04100165 | Plug Button (2 Required) (Replaces: 306667) |
|
Immediately | $ 50.62 | ||||
| 200 | 318315 | Outer Glass-oven Door |
|
- | |||||
| 201 | 319447 | Screw 8-32 X 1/2`` |
|
- | |||||
| 202 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 203 | 296214 | Inner Glass-oven Door |
|
- | |||||
| 204 | 296205 | Lining-oven Door |
|
- | |||||
| 205 | 303556 | Insulation |
|
- | |||||
| 206 | 296471 | Retainer - Oven Door Insulation |
|
- | |||||
| 207 | 120855 | Screw 6ax3/8`` |
|
- | |||||
| 208 | 303342 | Handle-oven Door |
|
- | |||||
| 209 | 296473 | Frame-oven Door |
|
- | |||||
| 210 | 112370 | Cushion-door Glass (3 Required) |
|
- | |||||
| 211 | 102376 | Screw 10-32 X 1/2`` |
|
- | |||||
| 211 | 322226 | Sw.-gas Valve-all 13130a Models |
|
- | |||||
| 211 | 326869 | Sw.-gas Valve-all 13131a & 2a Models |
|
- |
