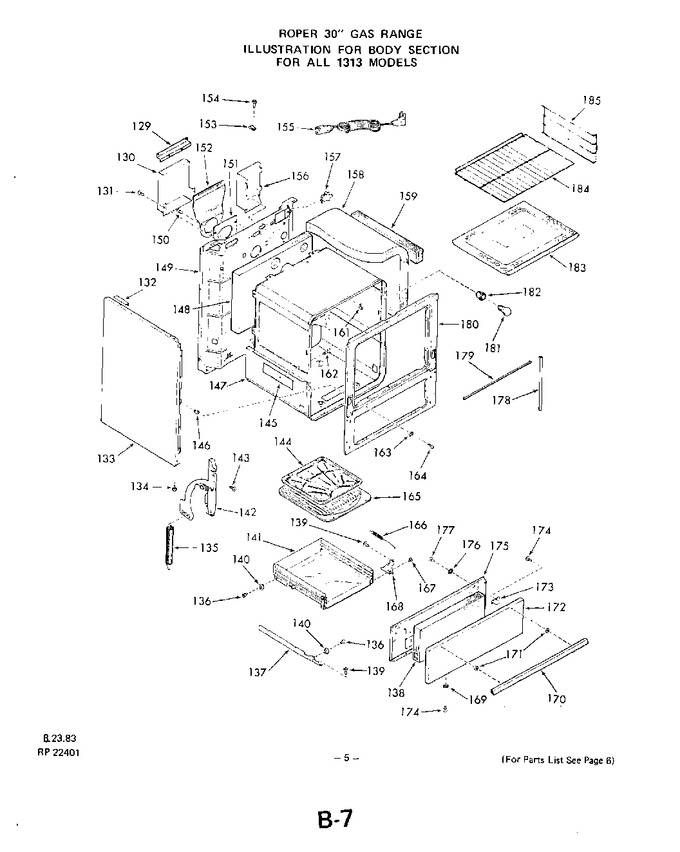

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 129 | 301624 | Support-flue Deflector |
|
- | |||||
| 130 | 296011 | Shield - Flue Deflector |
|
- | |||||
| 131 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 132 | 303513 | Spacer-main Top |
|
- | |||||
| 133 | 323091 | Body Side (golden Wheat-left) |
|
- | |||||
| 133 | 323092 | Body Side (almond- Right) |
|
- | |||||
| 133 | 323085 | Body Side (white-left) |
|
- | |||||
| 133 | 323087 | Body Side (coffee-left) |
|
- | |||||
| 133 | 323089 | Body Side (avocado-left) |
|
- | |||||
| 133 | 323093 | Body Side (almond-left) |
|
- | |||||
| 133 | 323084 | Body Side (white-right) |
|
- | |||||
| 133 | 323086 | Body Side (coffee-right) |
|
- | |||||
| 133 | 323088 | Body Side (avocado-right) |
|
- | |||||
| 133 | 323090 | Body Side (golden Wheat-right) |
|
- | |||||
| 134 | 326125 | Leg Leveler (4 Required) |
|
- | |||||
| 135 | 296170 | Spring-oven Door (lt. Or Rt.) |
|
- | |||||
| 136 | 70275 | Shoulder Rivet |
|
- | |||||
| 137 | WP691371 | Broiler Drawer Guide (inc`s. Keys 136 & 140) (left) (Replaces: 296326) |
|
Immediately | $ 64.81 | ||||
| 137 | 296327 | Broiler Drawer Guide (inc`s. Keys 136 & 140) (right) |
|
- | |||||
| 138 | W10820036 | Insulation-broiler Door (2 Required) (Replaces: 296141) |
|
Immediately | $ 27.45 | ||||
| 139 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 140 | 69006 | Roller |
|
- | |||||
| 141 | 303904 | Broiler Drawer (inc`s. 136 & 140) |
|
- | |||||
| 142 | 303133 | Hinge-oven Door (left) |
|
- | |||||
| 142 | 303132 | Hinge - Oven Door (right) |
|
- | |||||
| 143 | 112013 | Screw 10-32 X 5/8`` |
|
- | |||||
| 144 | 313071 | Broiler Pan Grid |
|
- | |||||
| 145 | 314487 | Retainer-insulation (rt. Or Lt.) |
|
- | |||||
| 146 | 296006 | Grommet - Screw (8 Req.) |
|
- | |||||
| 147 | 322913 | Oven Body |
|
- | |||||
| 148 | 296140 | Insulation - Oven Back |
|
- | |||||
| 149 | 322910 | Main Back |
|
- | |||||
| 150 | DE81-07393A | Screw 10 - 32 X 17/32`` (Replaces: 102428) |
|
$ 174.11 | |||||
| 151 | 296010 | Gasket-flue Deflector |
|
- | |||||
| 152 | 300917 | Flue Deflector |
|
- | |||||
| 153 | 106767 | Clip |
|
- | |||||
| 154 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 155 | 235822 | Range Service Cord |
|
- | |||||
| 156 | 318443 | Wire Shield |
|
- | |||||
| 157 | 232150 | Disconnect |
|
- | |||||
| 158 | 296139 | Insulation - Oven Top & Sides (1 Piece) |
|
- | |||||
| 159 | W10820036 | Insulation-burner Box Bottom Side (rt. (Replaces: 296141) |
|
Immediately | $ 27.45 | ||||
| 161 | 115533 | Thermostat Bulb Clip (2 Required) |
|
- | |||||
| 162 | 296097 | Dart-button Head (2 Required) |
|
- | |||||
| 163 | 303963 | Washer |
|
- | |||||
| 164 | WP303896 | Screw 8abx1`` (Replaces: 303896) |
|
Immediately | $ 66.12 | ||||
| 165 | 290171 | Broiler Pan |
|
- | |||||
| 166 | 67017 | Spring - Broiler Door (rt Or Lt) |
|
- | |||||
| 167 | 305064 | Shoulder Rivet |
|
- | |||||
| 168 | 296124 | Hinge - Broiler Door (right) |
|
- | |||||
| 168 | 296125 | Hinge-broiler Door (left) |
|
- | |||||
| 169 | 21067 | Washer |
|
- | |||||
| 170 | 292240 | Handle-broiler Door |
|
- | |||||
| 171 | 302343 | Spacer-handle |
|
- | |||||
| 172 | 296131 | Front Panel-broiler Door (white) |
|
- | |||||
| 172 | 308975 | Front Panel-broiler Door (coffee) |
|
- | |||||
| 172 | 308976 | Front Panel-broiler Door (avocado) |
|
- | |||||
| 172 | 308977 | Front Panel-broiler Door (golden Wheat) |
|
- | |||||
| 172 | 308346 | Front Panel-broiler Door (almond) |
|
- | |||||
| 173 | 296137 | Spacer (2 Required) |
|
- | |||||
| 174 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 175 | 296332 | Lining - Broiler Door |
|
- | |||||
| 176 | 69603 | Lockwasher |
|
- | |||||
| 177 | 239113 | Screw 10-32x3/8`` |
|
- | |||||
| 178 | 314573 | Side Seal-oven Door (rt. Or Lt.) |
|
- | |||||
| 179 | 314574 | Top Seal-oven Door |
|
- | |||||
| 180 | 316994 | Front Frame |
|
- | |||||
| 181 | DA96-01243C | Oven Lamp Bulb (Replaces: 111257) |
|
$ 144.00 | |||||
| 182 | 87883 | Holder-oven Lamp Bulb |
|
- | |||||
| 183 | 296069 | Oven Bottom |
|
- | |||||
| 184 | 305408 | Oven Rack (2 Required) |
|
- | |||||
| 185 | 305409 | Guide-oven Rack (rt. Or Lt.) |
|
- |
