SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Main Top


11 - Drawer/small Door


13 - Oven Door


14 - Wiring Diagram


15 - Wiring Diagram

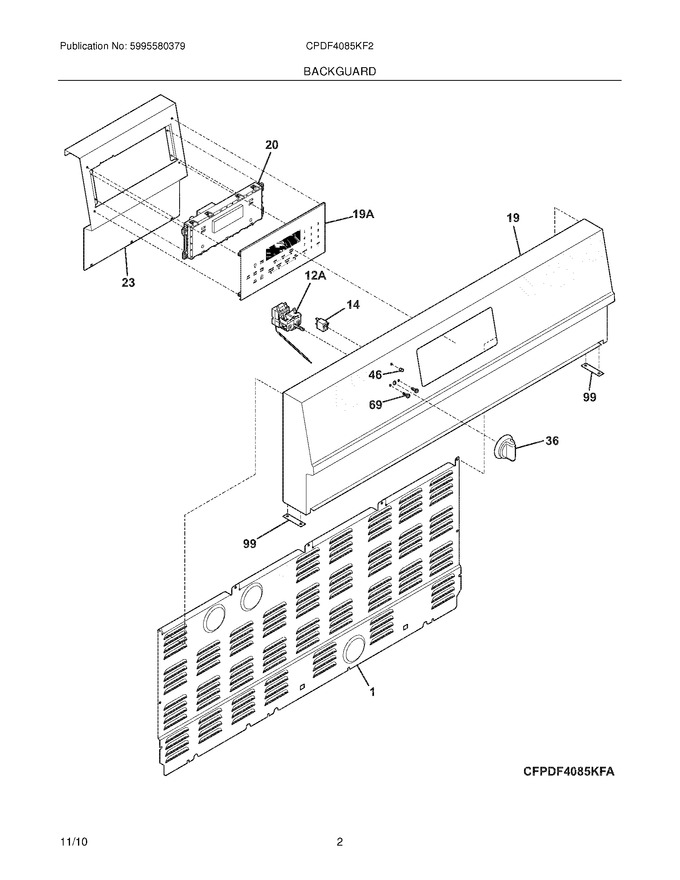

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086916		Shield,backguard		Appelez-nous	-
19	318192935		Panel,control ,stainless				$ 289.01
23	318015406		Bracket,timer		Appelez-nous	-
36	316564620		Knob,control ,stainless		Appelez-nous	-
46	318228301		Lens,indicator Light				$ 11.29
69	5303288565		Screw,8-32 X 3/16 ,(8)   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
F12A	318183000		Thermostat,oven				$ 403.49
F14	318369500		Light,indicator ,250v				$ 19.74
F19A	318404116		Glass Panel,control Assy ,w/touch Pad		Appelez-nous	-
F20	316462890		Controller,electronic ,es530				$ 354.80
FNI	318199771		Safety Thermostat Assy,w/harness ,and Connector		Appelez-nous	-
FNI	318232349		Wiring Harness,thermostat ,small Oven		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
