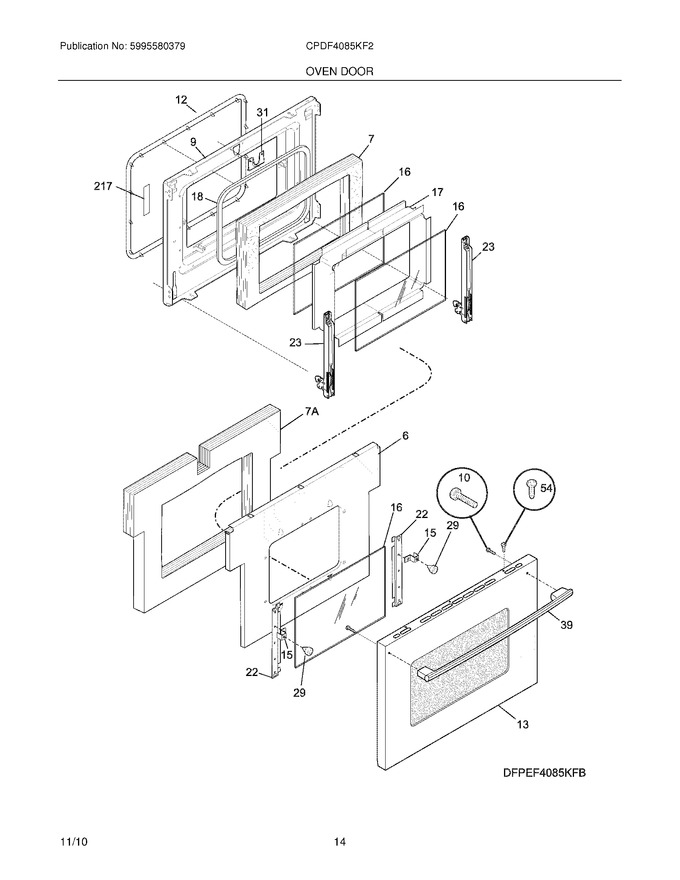

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318057006		Shield,insulation ,door		Appelez-nous	-
7	318285050		Insulation,oven Door		Appelez-nous	-
9	318156908		Door,inner		Appelez-nous	-
10	5304500008		Screw,10-24 X 1.750   (Replaces: 5304416408)				$ 12.13
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
13	318344025		Door Assembly,stainless ,w/glass				$ 343.56
15	318172904		Support,wire		Appelez-nous	-
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042103		Spacer,glass				$ 333.22
18	318293501		Gasket,door Glass Seal				$ 50.32
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318567103		Hinge,door ,upper Oven ,(2)		Appelez-nous	-
29	318147412		Bumper,base				$ 7.33
31	5303310536		Latch,oven Door				$ 30.66
39	318919702		Handle,door ,stainless		Appelez-nous	-
54	5303317975		Screw,10 X 1/2		Appelez-nous	-
217	316221002		Label,anti-tip		Appelez-nous	-
7A	318362167		Insulation,door		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	3201899		Washer,flat		Appelez-nous	-
NI	318346060		Insulation,.125 Thick ,3.125 X 8 ,(2)		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
