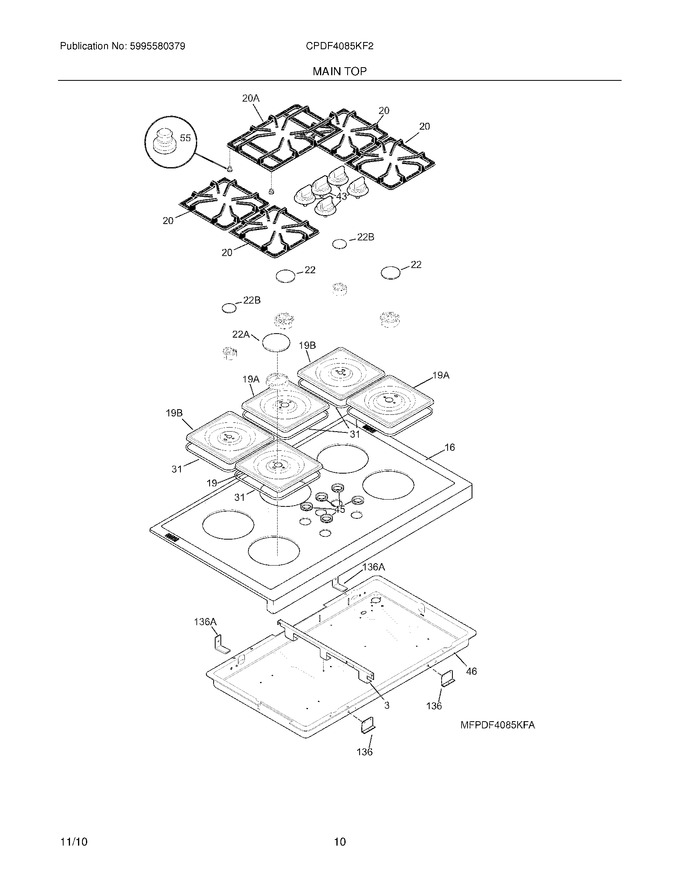

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171401		Support		Appelez-nous	-
16	318159638		Maintop,glass ,stainless/blk				$ 887.46
19	318168124		Pan,burner ,black ,large				$ 140.67
20	318226901		Grate,black ,(4)		Appelez-nous	-
22	316213505		Cap,9.5k Burner ,black				$ 102.30
31	318053901		Gasket,burner Pan				$ 33.60
43	316564619		Knob,top Valve ,stainless ,(5)		Appelez-nous	-
45	318146211		Bushing,black				$ 16.22
46	318077002		Box,burner		Appelez-nous	-
55	316246801		Foot,grate ,black ,center ,(4)		Appelez-nous	-
136	318180301		Bracket,box		Appelez-nous	-
19A	318168114		Pan,burner ,black ,medium				$ 151.68
19B	318168104		Pan,burner ,black ,small				$ 155.93
20A	318221701		Grate,black ,center		Appelez-nous	-
22A	318076426		Cap,burner ,black ,large		Appelez-nous	-
22B	318076406		Cap,burner ,black ,small		Appelez-nous	-
F136	318181101		Bracket		Appelez-nous	-
NI	318195000		Screw,pan Mtg ,(10)		Appelez-nous	-
NI	08008009		Bushing,nylon ,snap		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
