SELECT A DIAGRAM

01 - Top Mount Refrigerator

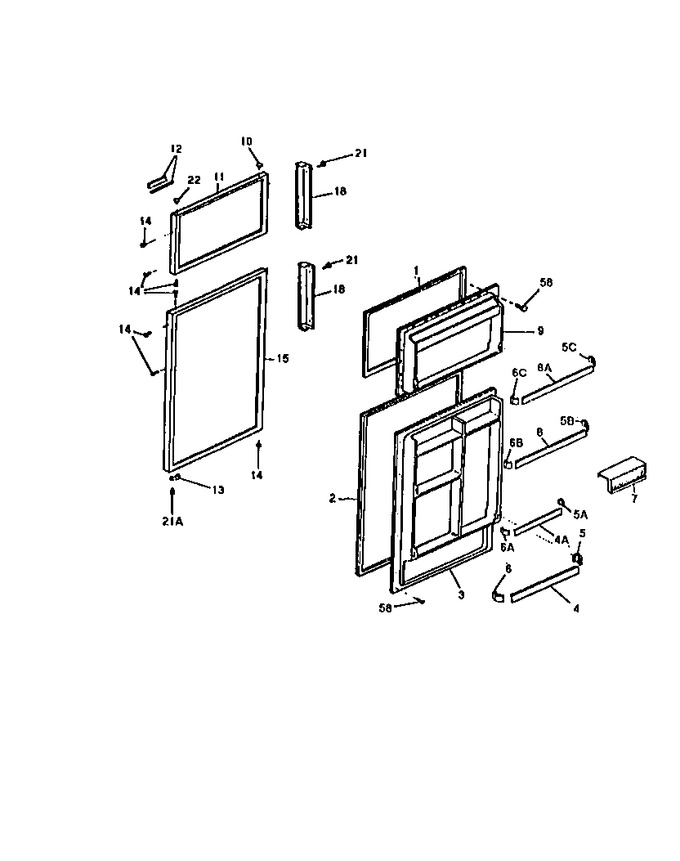

02 - Door Section


03 - Cabinet With Fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001304		Gasket, Freezer Door, Magnetic		Appelez-nous	-
2	5303017373		Gasket, Refrigerator Door, Magnetic		Appelez-nous	-
3	5303276336		Panel, Inner Door, Refrigerator		Appelez-nous	-
4	5303272143		Rack-door, Wide, Full Width		Appelez-nous	-
4	5303276155		Rack-door		Appelez-nous	-
5	3206161		Support-door Rack, Rh		Appelez-nous	-
5	3206156		Support-door Rack, Rh		Appelez-nous	-
5	3206150		Support, Door Rack, Rh				$ 12.58
5	3206165		Support-door Rack, Rh			Immediately	$ 8.19
6	3206166		Support-door Rack, Lh			Immediately	$ 9.93
6	3206162		Support-door Rack, Lh		Appelez-nous	-
6	3206157		Support-door Rack, Lh		Appelez-nous	-
6	3206151		Support-door Rack, Lh		Appelez-nous	-
7	5303276149		Door-dairy		Appelez-nous	-
8	5303272150		Rack, Door, Freezer		Appelez-nous	-
8	5303272149		Rack, Door, Freezer		Appelez-nous	-
9	5303276335		Panel, Inner Door, Freezer		Appelez-nous	-
10	5308000176		Button Plug, Wheat, Hinge Bearing Hole		Appelez-nous	-
11	5303916964		Panel, Freezer Door, Wheat		Appelez-nous	-
12	5303276130		Frame, Nameplate, With Tape		Appelez-nous	-
13	5308000255		Door Stop, Freezer/refrigerator				$ 42.20
14	5308000180		Button Plug, Wheat, Handle/door Stop		Appelez-nous	-
15	5303916979		Panel, Refrigerator Door, Wheat		Appelez-nous	-
18	5308009875		Handle, Door, Teakwood Vinyl, Refrigerator/freezer (2)		Appelez-nous	-
21	5308011745		Screw				$ 10.38
21	5308013645		Screw, Handle Mounting, 8 Cr Truss Head, 10(d) X 1/2		Appelez-nous	-
22	3206153		Bearing-hinge (8)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
