01 - Top Mount Refrigerator


02 - Door Section

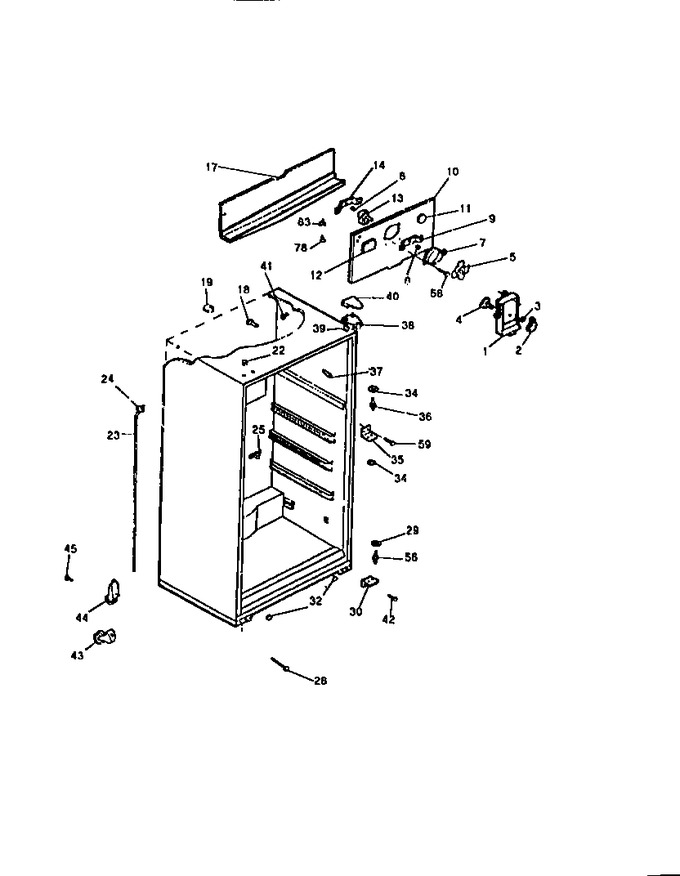

03 - Cabinet With Fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303276180		Cover-fan		Appelez-nous	-
1	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
2	5308000081		Knob - Damper Control				$ 36.02
3	5303001028		Nut, Push		Appelez-nous	-
4	3206110		Damper-fan Cover				$ 53.08
5	5308000010		Fan Blade			Immediately	$ 49.03
6	3206135		Cover-lower Hinge Screw		Appelez-nous	-
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket, Motor Mounting, Front		Appelez-nous	-
10	3206119		Cover-evaporator Coil		Appelez-nous	-
10	5303209814		Nut, U-type, No. 8(a), Evaporator Cover (2) (non-illustrated)		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5308013636		Plug, Decorative, Ice Maker Hole		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303205119		Bracket, Motor Mounting, Rear		Appelez-nous	-
17	3206146		Drain Trough		Appelez-nous	-
18	5308000097		Support, Evaporator Cover (2)		Appelez-nous	-
19	5303001198		Tube-rubber		Appelez-nous	-
22	5303001678		Button Plug, Wheat, Upper Hinge Hole		Appelez-nous	-
23	5303269702		Drain Tube With Seal Ring				$ 104.63
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5308000056		Spout-drain Tube				$ 11.66
25	5303001361		Pin, Push, Drain Spout (2) (non-illustrated)		Appelez-nous	-
28	5308009761		Bolt, Roller Adjusting (2)				$ 18.61
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	3206142		Button Plug, Cabinet Base (2)		Appelez-nous	-
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5303001369		Bracket- Center Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202338		Trim, Cabinet Corner, Wheat (4)		Appelez-nous	-
38	5308012296		Tapping Plate, Upper Hinge, (2) (non-illustrated)				$ 47.44
38	3206100		Bracket-upper Hinge		Appelez-nous	-
38	241710601		Screw   (Replaces: 5303001479)				$ 13.46
39	5303001037		Shim - Upper Hinge				$ 12.39
42	3206143		Screw, Lower Hinge Mounting, Hex Washer Head, 1/4-20 X 5		Appelez-nous	-
43	5308011326		Washer, Adjusting Bolt, Nylon (2) (non-illustrated)				$ 9.87
43	5300188673		Roller Assembly, Front (2)		Appelez-nous	-
43	5308009760		Roller, (2) (non-illustrated)		Appelez-nous	-
43	5308009790		Spring, Roller Adjusting (2) (non-illustrated)				$ 4.30
44	3206237		Roller Assembly, Rear (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
56	5303001321		Pin-lower Hinge				$ 17.25
58	5308002748		Screw		Appelez-nous	-
59	3206134		Screw, Hinge/mullion Mounting, Acorn Hex Washer Head, 1		Appelez-nous	-
78	5303210353		Screw, Connector Bracket, Hex Washer Head, 8-32(ca) X 1		Appelez-nous	-
83	5308000107		Bracket-connector				$ 33.23
*49680	5308016571		Button Plug-liner				$ 4.79
