01 - Top Mount Refrigerator
02 - Door Section
03 - Cabinet With Fan Assembly

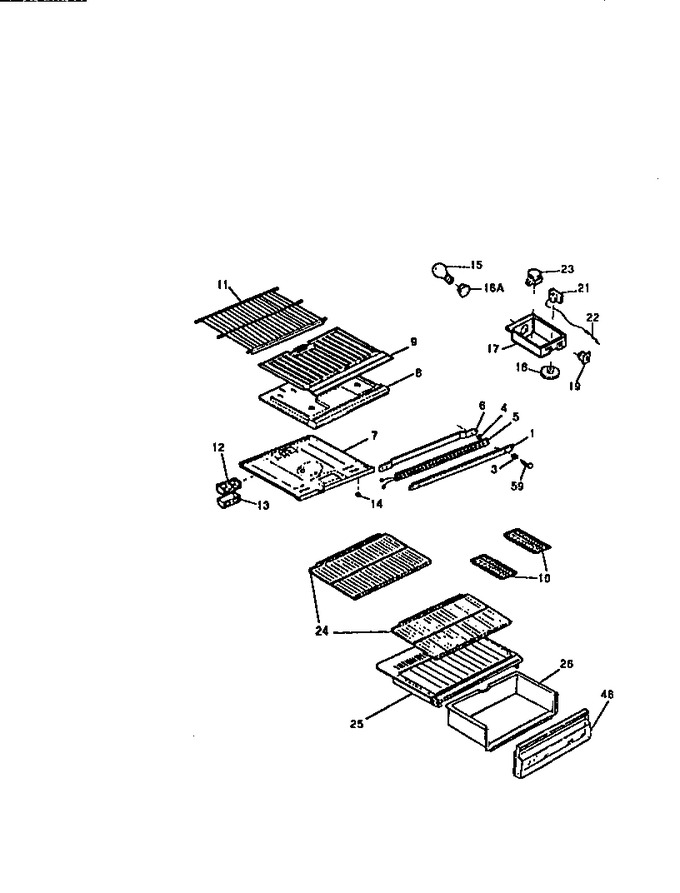

04 - Shelves, Controls, Divider, Mullion
05 - Cooling System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206123 | Mullion-wheat |
|
- | |||||
| 3 | 5308003607 | Washer, No. 10 Steel, 7/23 X 7/16 Od |
|
$ 1.00 | |||||
| 4 | 5303200464 | Spacer, Mullion Mounting (2) |
|
- | |||||
| 5 | 3206120 | Heater-mullion |
|
- | |||||
| 6 | 5308003604 | Strap, Mullion Mounting |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 7 | 3206128 | Top Panel, Refrigerator |
|
- | |||||
| 7 | 3205268 | Protector, Edge (non-illustrated) |
|
- | |||||
| 8 | 3206131 | Divider, Styrofoam |
|
- | |||||
| 9 | 3206132 | Bottom Panel-freezer |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic |
|
- | |||||
| 11 | 5303208580 | Shelf-freezer |
|
- | |||||
| 12 | 5303200590 | Extension, Air Deflector, With Insulation (non-illustrated) |
|
- | |||||
| 12 | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 12 | 5308014667 | Deflector, Air |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 17 | 3206130 | Box-control |
|
- | |||||
| 18 | 5303209251 | Knob-temperature Control |
|
- | |||||
| 19 | 3206129 | Switch-energy Saver |
|
- | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 22 | 3018891 | Housing - Control Cap Tube |
|
- | |||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303210142 | Shelf, Full, Sliding, Refrigerator (2) |
|
- | |||||
| 25 | 5303276242 | Cover-crisper Pan |
|
- | |||||
| 26 | 3206107 | Pan-crisper |
|
- | |||||
| 46 | 3206106 | Front-crisper Pan, Full |
|
- | |||||
| 59 | 3206134 | Screw, Hinge/mullion Mounting, Acorn Hex Washer Head, 1 |
|
- |
