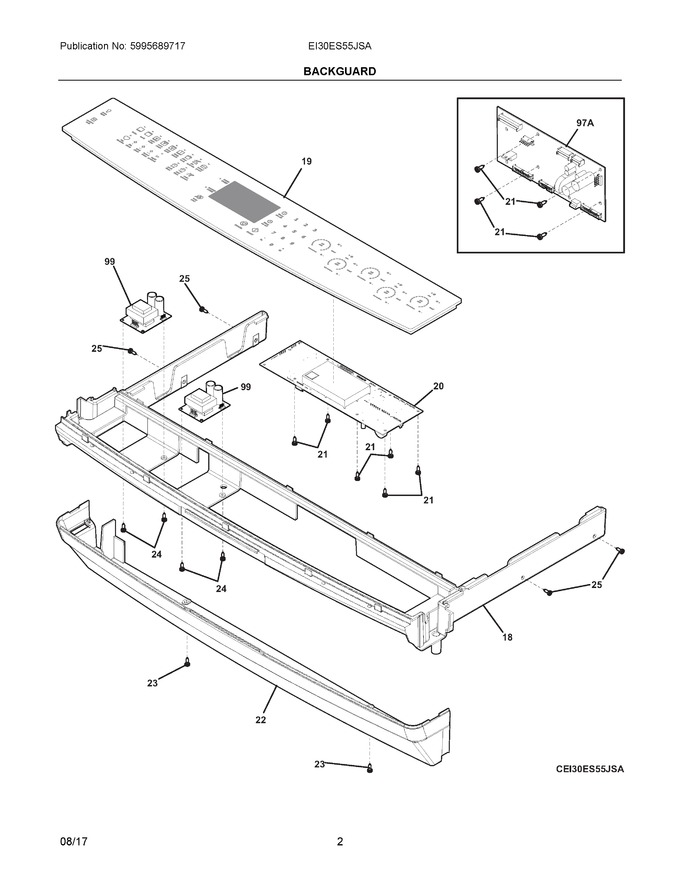

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	318900301		Subframe, Control				$ 231.53
19	318923701		Control Panel, Assembly, Black, W/controls				$ 1,109.85
20	316576611		Controller, Electronic, Es630				$ 461.11
21	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
22	318905005		Panel, Service, Stainless				$ 450.32
23	5304417153		Screw, Shoulder, 8-18 X 1/2, (4)		Appelez-nous	-
24	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18
25	5303131801		Screw, 10 X 3/8		Appelez-nous	-
99	316535201		Board, Power Supply, 8v				$ 349.42
97A	316576431		Board, Power, Uib				$ 324.74
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318578329		Harness, Wiring, Timer		Appelez-nous	-
NI	318578320		Harness, Wiring, Controller, To Uib		Appelez-nous	-
NIA	318578306		Harness, Wiring, Power Supply				$ 131.46
