SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

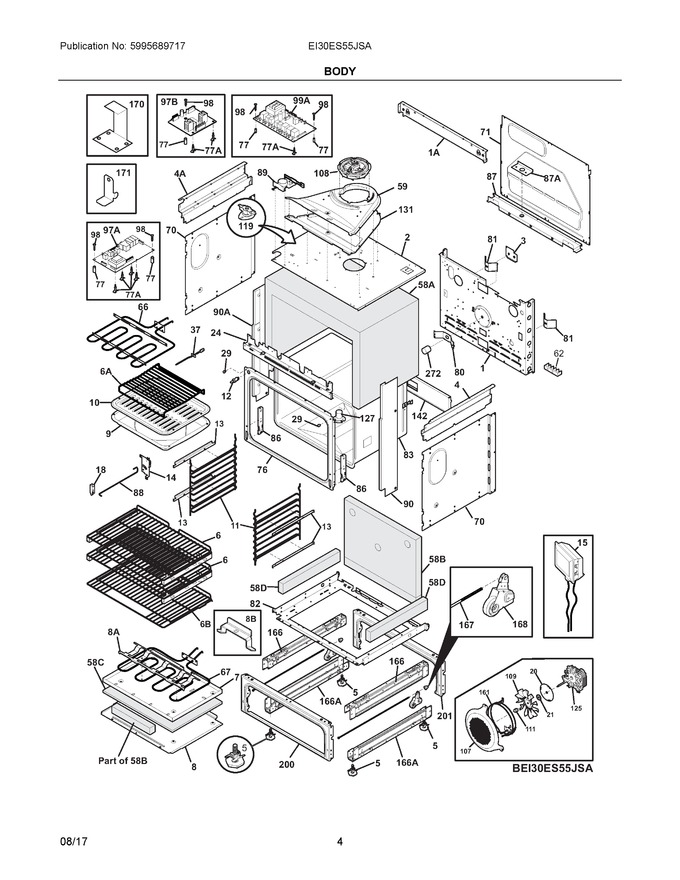

03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back, Main				$ 88.31
2	318570500		Panel, Insualtion, Top				$ 86.89
3	318402800		Plate, Cover				$ 9.23
4	318905700		Panel, Side, Rh Upper				$ 62.79
5	318175510		Screw, Leveling, W/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	318903105		Shelf, Oven, (2)				$ 416.08
7	318297303		Box, Bake Element				$ 125.84
8	318359500		Panel, Service				$ 140.09
9	318138801		Pan, Broiler		Appelez-nous	-
10	318126401		Insert, Broiler Pan		Appelez-nous	-
11	318903300		Rack, Oven Shelf, (2)				$ 105.80
12	316445501		Switch, Oven Light, Door Frame				$ 90.01
13	318603913		Bracket, Ladder Mtg., (4)				$ 66.99
14	318562200		Sensor Assy, W/switch, And Bracket				$ 257.99
15	318241006		Lamp, Oven, (2), Halogen				$ 117.71
18	318562300		Bracket, Rod				$ 16.87
20	318389400		Plate, Retainer				$ 16.21
21	318389000		Seal, Ring				$ 22.75
24	318913116		Trim, Vent, Black, Upper				$ 91.72
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
59	318570602		Duct, Cooling Fan		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255806		Element, Broil, 4000w				$ 282.09
67	318254916		Element, Bake, 2500w, 8 Pass   (Replaces: 318254911)			Immediately	$ 204.47
70	318259114		Shield, Insulation, Sides, (2)				$ 96.81
71	318260007		Panel, Rear Box				$ 102.90
76	318056236		Front, Oven		Appelez-nous	-
77	318293702		Spacer, Control				$ 16.22
80	5303320846		Plate, Oven Mtg				$ 51.50
81	318192400		Spring, Oven				$ 312.53
82	318258770		Shield, Insulation, Lower				$ 26.46
83	318261445		Liner, Oven Assy				$ 183.15
86	316580700		Receptacle, Hinge, (2)   (Replaces: 316508600)			Immediately	$ 30.47
87	318260627		Bracket, Cable Mtg.		Appelez-nous	-
88	318376505		Rod, Latch				$ 13.72
89	318261223		Motor, Latch Assy				$ 92.56
90	318905812		Panel, Side, Stainless, Rh				$ 206.49
98	5304401490		Screw, 6-18 X 1, (2)		Appelez-nous	-
107	318906601		Cover, Fan				$ 202.63
108	318575600		Motor Assembly, Cooling Fan			Immediately	$ 272.25
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
125	5304463302		Motor, Fan   (Replaces: 318398201)			Immediately	$ 259.95
127	318317105		Adapter Assembly, Vent Tube, W/converter				$ 7.65
131	318574805		Bottom, Cooling Duct		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
161	318255511		Element, Convection, 2500 W			Immediately	$ 110.20
166	318298400		Bracket, Base Support, (2)				$ 59.48
167	318147811		Screw, Lock, Adjusting				$ 31.19
168	318302400		Wheel & Bracket Assy, Adjustable, (2)				$ 75.13
170	318335700		Anti-tip & Accessories				$ 56.89
171	318335200		Bracket, Anti-tilt				$ 31.90
200	318298226		Frame, Drawer, Front				$ 107.00
201	318298233		Frame, Drawer, Black   (Replaces: 318298230)				$ 45.36
272	318249409		Tube, Protector		Appelez-nous	-
166A	318298403		Bracket, Base Support, Lower, (2)		Appelez-nous	-
1A	318905600		Back, Main, Upper				$ 55.24
4A	318905701		Panel, Side, Lh Upper				$ 75.14
58A	318386113		Insulation, Oven Wrapper		Appelez-nous	-
58B	318285079		Insulation, Oven Back		Appelez-nous	-
58C	318294912		Insullation, Bake Element				$ 97.17
58D	318372001		Insulation, 20.5 X 2.375, 1" Thick, (2)		Appelez-nous	-
6A	318365800		Rack, Broiler Pan				$ 52.46
6B	318908006		Shelf, Oven   (Replaces: 318908003)			Immediately	$ 232.91
77A	316114100		Spacer				$ 60.96
87A	318111806		Plate, Cord Set Mtg				$ 11.68
8A	318313601		Bracket, Bake Element				$ 71.45
8B	318403202		Bracket, Service Panel, (2)				$ 17.69
90A	318905813		Panel, Side, Stainless, Lh				$ 199.31
97A	316443933		Board, Relay				$ 225.96
97B	316519200		Board, Variable Speed, Triac			Immediately	$ 256.24
99A	316442120		Board, Power, Relay   (Replaces: 316442115)			Immediately	$ 309.84
NI	316519700		Screw, #8-18 X 3/8   (Replaces: 5304454881)				$ 10.02
NI	5303323129		Screw, 8 X 0.750		Appelez-nous	-
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NI	5304436875		Screw, 8-18 X 1/2, Black, (3)				$ 14.41
NI	5304400192		Retainer, Wiring		Appelez-nous	-
NI	318384495		Wiring Harness, Main		Appelez-nous	-
NI	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
NI	5303323136		Screw Ground		Appelez-nous	-
NI	318578330		Harness, Wiring, Latch		Appelez-nous	-
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw, 8-18 X 13/32				$ 8.66
NI	5304415832		Screw, 8-18 X 13/32", (7)		Appelez-nous	-
NI	3051050		Screw, Shoulder				$ 12.29
NI	318531701		Spacer				$ 12.05
NIA	318579000		Bracket, Wire		Appelez-nous	-
NIA	318264200		Plate, Grounding Strap				$ 23.51
NIA	5304461333		Screw, 10-32 X 17/32			Immediately	$ 13.46
NIA	5304456367		Rivet, Ladder Bracket, (8)				$ 13.99
NIB	5303323139		Screw, 10-24 X 0.906				$ 13.46
NIBA	5304471183		Screw, 6-32 X 17/32				$ 9.27
NIC	316205500		Nut, 10-32   (Replaces: 5303323144)				$ 11.34

    View Diagram in Separate Window       Print Part List
