SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

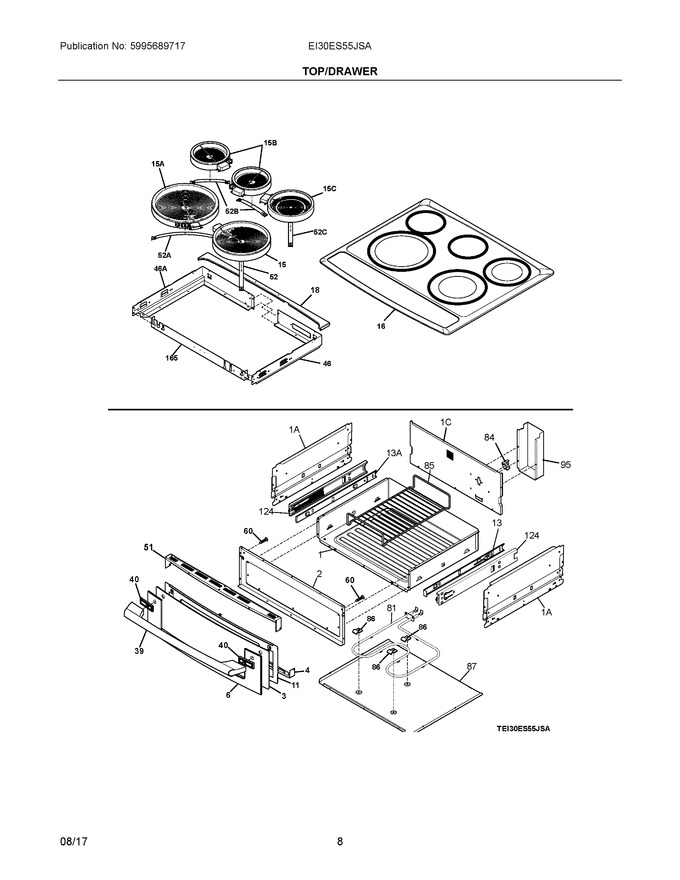

04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304405		Drawer, Body Assembly				$ 248.01
2	318391205		Panel, Drawer, Inner		Appelez-nous	-
3	318904405		Glass, Drawer, Black, Outer				$ 262.34
4	318904903		Trim, Door, Black, Lower				$ 31.87
6	318377914		Trim, Front, Stainless		Appelez-nous	-
11	318385701		Frame, Drawer, Outer				$ 343.25
13	318259509		Glide, Warmer, Inner Rh				$ 26.25
15	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316465002)			Immediately	$ 90.14
16	318223730		Main Top, Assy., Glass/steel, Black/stainless				$ 464.36
18	318906900		Support, Deflector Box				$ 37.47
39	241881302		Handle, Door, Stainless				$ 226.24
40	318902902		Spacer, Handle, Grey, (2)				$ 53.76
46	318568200		Box, Burner, Rh				$ 23.99
51	318904703		Trim, Door, Black, Upper				$ 57.28
52	318122010		Spring, Element Mtg, 3000w				$ 62.51
60	5304477736		Screw, Machine, 10-24x29/32, (2)		Appelez-nous	-
81	318255301		Element, Warmer Drawer				$ 105.42
84	318005108		Thermostat			Immediately	$ 81.14
85	807328301		Rack, Warmer Drawer   (Replaces: 318345601)				$ 87.21
86	316095800		Clip, Hold Down, (3)				$ 9.93
87	318300102		Panel, Warmer Drawer, Lower				$ 106.22
95	318303800		Shield, Wire		Appelez-nous	-
124	316105501		Glide, Outer/rh & Lh, (2)				$ 90.72
165	318568300		Front Panel, Burner Box		Appelez-nous	-
13A	318259508		Glide, Warmer, Inner Lh				$ 27.88
15A	316282101		Element, Surface, 9"/12", 1200w/1800w, Dual Radiant   (Replaces: 318198935)			Immediately	$ 283.03
15B	318178110		Element, Surface, 6", 1200w, (2), Radiant   (Replaces: 318198830)			Immediately	$ 122.86
15C	318198952		Element, Surface, 750/1800w, Dual Radiant   (Replaces: 318198936)			Immediately	$ 250.90
1A	318300003		Panel, Warmer Drawer, Side, (2)				$ 56.13
1C	318300301		Panel, Warmer Drawer, Rear		Appelez-nous	-
46A	318568201		Box, Burner, Lh				$ 28.93
52A	318122011		Spring, Element Mtg, 1200w/1800w				$ 62.14
52B	318122006		Spring, Element Mtg, Small				$ 66.25
52C	318122008		Spring, Element Mtg, 1800w/3000w				$ 90.80
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	134716700		Washer, Flat, Lower   (Replaces: 3201909)				$ 2.12
NI	5304463974		Screw, Thermostat, 6-20 X 5/8, (2)		Appelez-nous	-
NI	318531701		Spacer				$ 12.05
NI	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18
NI	318228978		Harness, Wiring, Cooktop		Appelez-nous	-
NI	316459400		Pad, Cleaning		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	5304400192		Retainer, Wiring		Appelez-nous	-
NI	5304463977		Bumper, Base, (2)				$ 10.28
NIA	318403105		Bracket, Bridge, (2)   (Replaces: 318403102)				$ 49.62
NIB	318534402		Gasket, Maintop, Black				$ 96.54

    View Diagram in Separate Window       Print Part List
